Application

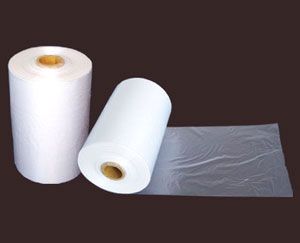

This film blowing and printing machine is for the production of plastic soft packages. It can carry out blowing, or simultaneous blowing and printing according to your needs. All sizes of LDPE, LLDPE, HDPE plastic films can be blew to pack foods, articles of daily use, chemicals, gifts, and industrial products.

Features

1. This machine adopts Wannan main motor, Siemens low-voltage electrical appliances, Panasonic inverter, and Omron temperature meter. These key components ensure the stable performance of this film blowing and printing machine.
2. It is equipped with a digital corona processor to ensure the color fastness of the film while printing.
3. This film blowing and printing machine adopts humanized settings. Pneumatic clutch is adopted for its both traction devices and printing devices. It could be connected to multiple machines, with easy operation and low labor costs.
4. It can produce various plastic films, with a maximum unfold width of 1200mm and 4 printing colors.
5. It is provided with a two-year warranty.

Main Specifications

Model	WLCY -600
Screw: pole	Ø45mm
L/D	30:1(L/D)
Screw speed	10-110rpm
Die-head Diameter	Ø60-ø100
Film thickness	0.01-0.10mm
Printing color	One color
Width of unfold films	100-600mm
Heating power	13kw
Motor power	11kw
Production capacity	15-40kg/h
Total weight	≈2.0t
Overall size	3000×1200×4000mm
