Home > Products Show > LED Strips > 30PCS 3528 SMD LED strip

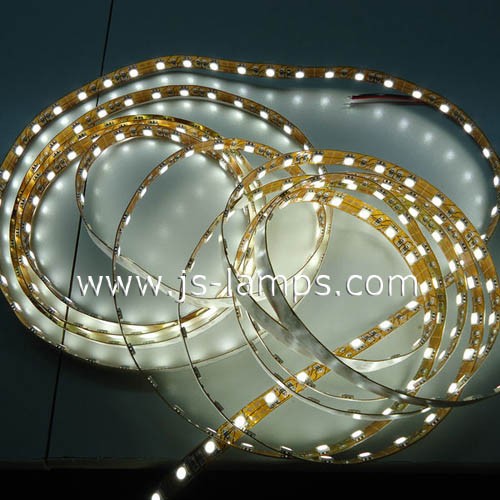

30PCS 3528 SMD LED strip

Original Image

Products Visitors:594

Product Name:30PCS 3528 SMD LED strip
Model:js-sc3528n30-r
Size:5000*8*0.22mm
Package:anti-static bag

Products description: 30PCS 3528 SMD LED strip

Article No.	JS-SC3528N30-R
Color	red,yellow, blue,green,white,ww
LED QTY	30 PCS 3528 SMD LEDs a meter
Power	2.4w/meter
Cutable	every 3 LEDs could be cut
Beam degree	120 degree
Voltage	DC12V
Packing	5m/roll
IP GRADE	NON-waterproof,IP65,IP67,IP68 is availble
Warranty	two years
Payment terms	40% for the order, the balance will be paid before delivery
Samples	100% repaid
lead time	3-5days for the samples
Lifespan	50,000hrs
chip	Epistar chip

Our RGB led strips divided into two big parts, one is waterproof , the other is non-waterproof.

1- Non waterproof: without any waterproof protection materials covered.

2- IP 65 waterproof: with Epoxy Glue covered on the PCB and LEDs,

3- IP 67 waterproof: with Silicon tube Covered the whole LED strips, and sealed with cap at both ends.

4- IP 68 waterproof: with Silicon tube covered the whole LED strips, then insert Epoxy glue inside the silicon tube, sealed with cap at both ends.

This model is non-waterproof led light.

All the RGB led strip including 30 LED/M, 60 LED/M, 120LED/M standard length is 5 meters per reel, can be connected with led rgb cotroller,can make different color changing programs.

LED strips can be cut every 3 LEDs.

Connection:

connect the RGB LED controlle with the 12Volt Power supply firstly, then connect the RGB LED strip with the RGB LED controller

If you want to connect 2 reels or more reels together, you need RGB Amplifiers to exceed the signal of the RGB controllers.

Product Images: 30PCS 3528 SMD LED strip
