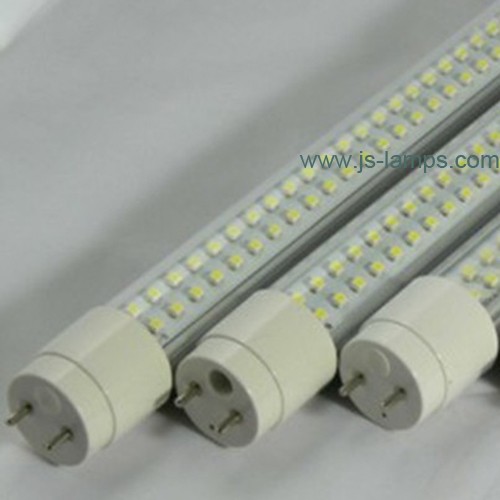

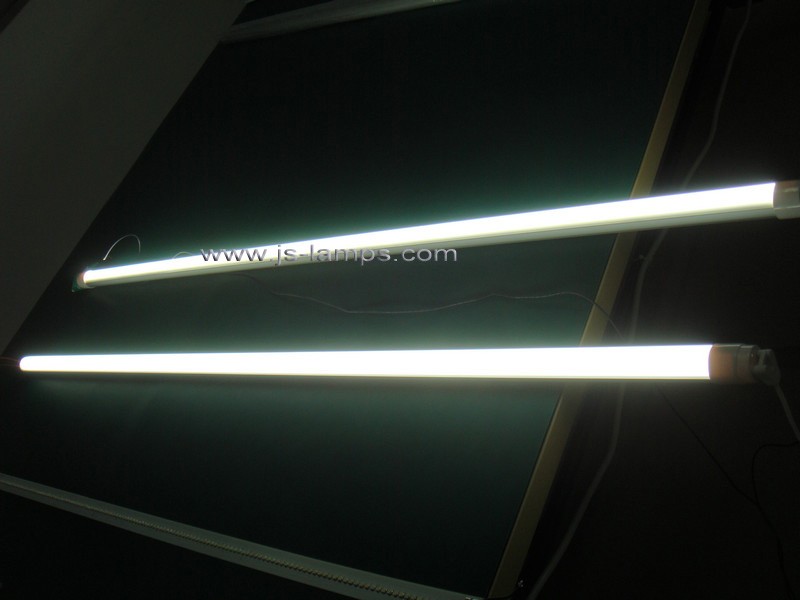

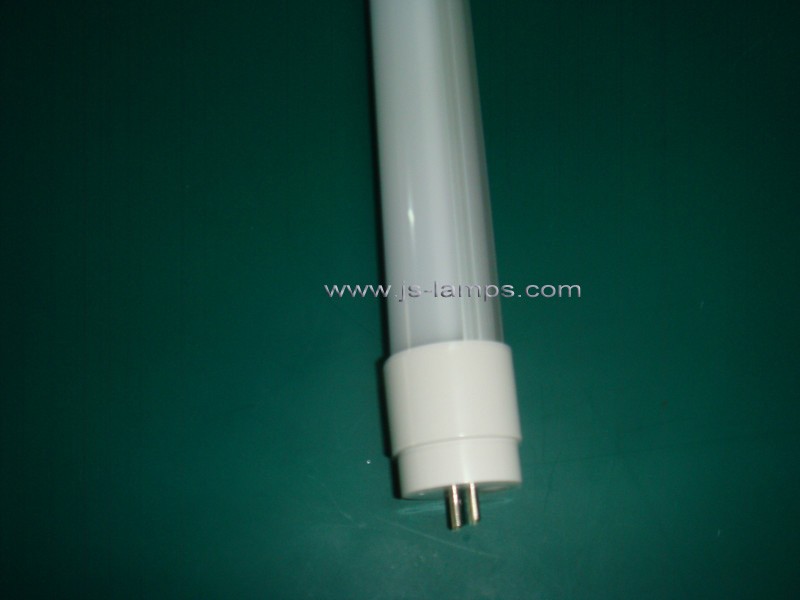

18w led t8 tubes, 288pcs 3528 smd LEDs
epistar chip
ARTICLE NO |
JS-T60WS09 |
Base type | G13 |
Input voltage | AC100-240V,AC100-270V |
Polarity | Bipolar protection |
Efficiency |
>90% |
Total power | 18w |
Output power | 16w |
Flux output | >1200lm opal pc housing |
>1300lm transparent pc housing | |
CRI | 70% |
Beam angle | 120degree |
LED TYPE | 3528 SMD 0.06W/LED |
CCT | 2800-8000K |
Operating temperature | -20~+45degree ceilsuis |
Storage Temperature | -30~+65degree ceilsuis |
Housing Matieral | silver aluminum body+opal pc cover |
LEDs life | 50,000hrs |
Weight | 335g |
Features:
1.
LED TUBE widely used in hotel, meeting room, factory, office, school,company, hospital,
supermarket,mall market, house and other indoor lightings.
2. LEDs as the illuminant use the die-cast aluminum+ pc housing, together with PCB designed. This makes it a good heat dissipation and high saving energy, so that extend the light's lifetime.
3. Quick starting, when power on, it lighted up immediately without delay.
4. Environmental protection. No UV, No IR, No Radiation, No EMI. Without Hg, Pb and some other hazardous elements.
5. Brief structure, convenient to install, it's a quality product.
6. High efficiency, in the condition of the same flux, LED light just use up 1kw with 1000hrs, the normal incandescent could use 1kw with 17hrs, the normal energy saving light will light up 100hrs to 1kw.
7. Protect the eyesight:the driver used DC Supply, without flashing.
8. High luminance efficiency, 90% electronic energy could be transformed into luminous energy; normal incandescent could have only 20% electronic energy transformed into luminous energy, and the left 80% electronic energy converted into heat energy.
9. More safety, the low work current, voltage and low heat, so that makes a safety environment.
