- Product Name:advanced PE foam sheet production line(net,pipe)
- Package:container
- Size:1900*3800*2250
- Model:SH -120
product introduction:

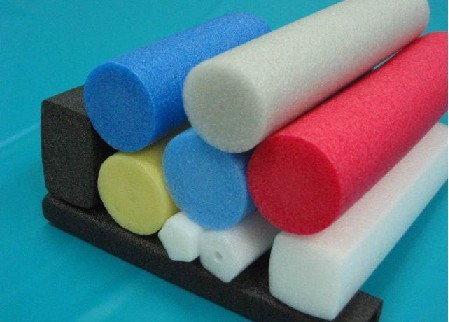

EPE foam sheet machine is one kind of popular soft packing material at present and is widely used for packing household products, glassware, porcelain products, instrument, top-grade furniture, shoes and caps depending on soft texture and excellent anti-shocking performance.
Foam sheet production line adopts advanced butane physical foaming technology with high foaming rate, energy-saving performance and high efficiency, as well as anti-explosion electric components, frequency speed control and intelligent digital meter with safe and stable running, easy operation, stable and reliable quality, various EPE foam sheets can be produced continuously.
It can also be used as padding of box and case, anti-damp layer of wood floor, heat preservation layer of refrigeratory and soft padding for sports.
main technical parameter:
Type |
SH-90 |
SH-105 |
SH-120 |
SH-150 |
SH-170 |
|
Extruder |
|
90/55 |
105/55 |
120/55 |
150/55 |
170/55 |
Screw rotate speed |
r/min |
5-45 |
5-45 |
5-45 |
5-45 |
5-45 |
Foam ratio |
|
20-40 |
20-40 |
20-40 |
20-40 |
20-40 |
Product width |
mm |
1000-1500 |
1000-1800 |
1000-2000 |
1000-2000 |
1000-2000 |
Product thickness |
mm |
0.5-3.5 |
0.5-5.0 |
0.8-8.0 |
1.0-10.0 |
2.0-15.0 |
Cooling mode |
|
Air-cooled, water-cooled |
||||
Installed capacity |
kw |
90 |
100 |
120 |
150 |
180 |
Dimension |
mm |
20000×2300×2200 |
23000×2300×2200 |
25000×2300×2200 |
30000×2300×2200 |
32000×2300×2200 |
