- Product Name:EPS foam sheet extruder machine
- Package:container
- Size:1900*3800*2250
- Model:SH-120
product introduction:

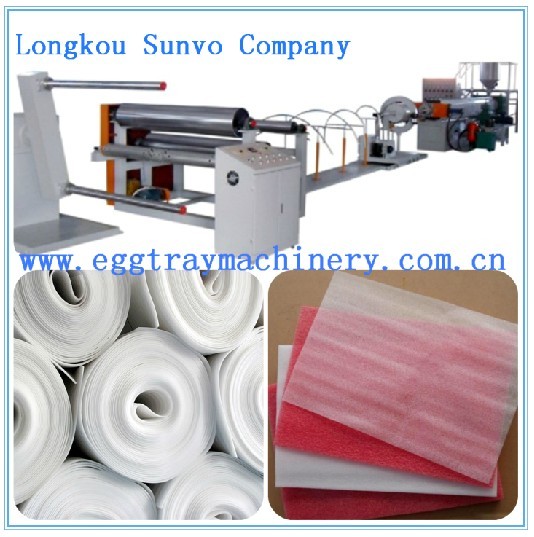

EPE foam sheet extrusion line applies for advanced butane physical foaming technology with high foaming rate, energy-saving performance and high efficiency, as well as anti-explosion electric components, frequency speed control and intelligent digital meter with safe and stable running, easy operation, stable and reliable quality.
Foaming pipe, stick and net can also be manufactured if change relevant die.head and mould.
Type |
SH-90 |
SH-105 |
SH-120 |
SH-150 |
SH-170 |
|
Extruder |
|
90/55 |
105/55 |
120/55 |
150/55 |
170/55 |
Screw rotate speed |
r/min |
5-45 |
5-45 |
5-45 |
5-45 |
5-45 |
Foam ratio |
|
20-40 |
20-40 |
20-40 |
20-40 |
20-40 |
Product width |
mm |
1000-1500 |
1000-1800 |
1000-2000 |
1000-2000 |
1000-2000 |
Product thickness |
mm |
0.5-3.5 |
0.5-5.0 |
0.8-8.0 |
1.0-10.0 |
2.0-15.0 |
Cooling mode |
|
Air-cooled, water-cooled |
||||
Installed capacity |
kw |
90 |
100 |
120 |
150 |
180 |
Dimension |
mm |
20000×2300×2200 |
23000×2300×2200 |
25000×2300×2200 |
30000×2300×2200 |
32000×2300×2200 |
