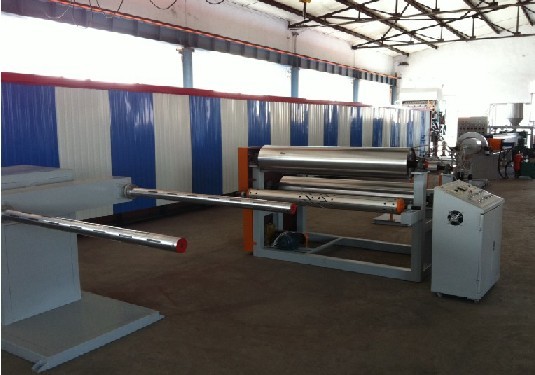

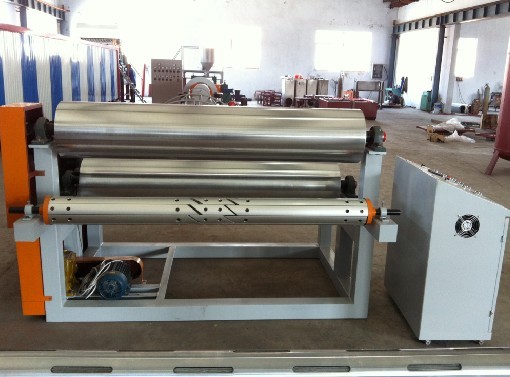

- Product Name:SH-105 plastic foam sheet making machine
- Package:container
- Size:1900*3800*2250
- Model:SH-105
Detail Product Description:
EPE foam sheet machine is one kind of popular soft packing material at present and is widely used for packing household products, glassware, porcelain products, instrument, top-grade furniture, shoes and caps depending on soft texture and excellent anti-shocking performance. It can also be used as padding of box and case, anti-damp layer of wood floor, heat preservation layer of refrigeratory and soft padding for sports.
Foam sheet production line adopts advanced butane physical foaming technology with high foaming rate, energy-saving performance and high efficiency, as well as anti-explosion electric components, frequency speed control and intelligent digital meter with safe and stable running, easy operation, stable and reliable quality, various EPE foam sheets can be produced continuously.
Main Technical Parameter:
Type SH-90 SH-105 SH-120 SH-150 SH-170 Extruder 90/55 105/55 120/55 150/55 170/55 Screw rotate speed r/min 5-45 5-45 5-45 5-45 5-45 Foam ratio 20-40 20-40 20-40 20-40 20-40 Product width mm 1000-1500 1000-1800 1000-2000 1000-2000 1000-2000 Product thickness mm 0.5-3.5 0.5-5.0 0.8-8.0 1.0-10.0 2.0-15.0 Cooling mode Air-cooled, water-cooled Installed capacity kw 90 100 120 150 180 Dimension mm 20000×2300×2200 23000×2300×2200 25000×2300×2200 30000×2300×2200 32000×2300×2200
