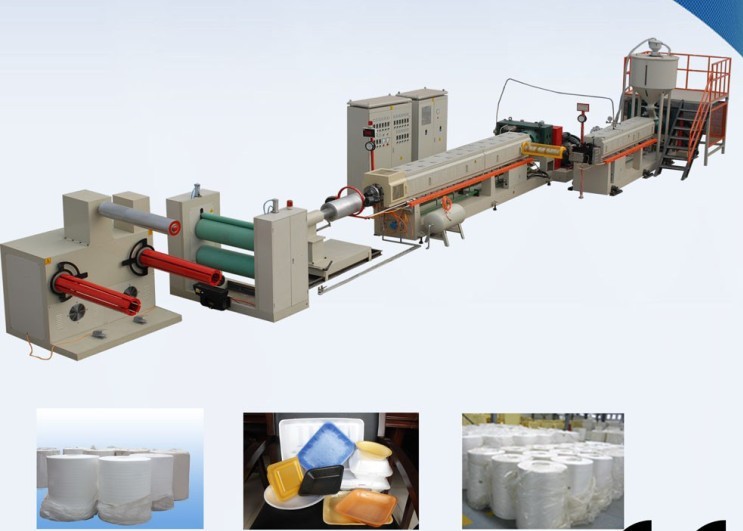

- Product Name:PS foam sheet extruder
- Package:container
- Size:19.00*3.80*2.25m
- Model:SH-90
;){kind=small}
product introduction:
PS Foam Sheet Extruder uses a tandem screw technology to produce fine-block cell-structured extruded polystyrene foam sheet with high strength and a pearl and even surface, in a continuous roll, from polystyrene injection an eco-friendly blowing gas and additives. It has a user friendly operating system with inverter controlled driving, digital temperature control and so on.
main technical parameter:
|
Type |
SH-90 |
SH-105 |
SH-120 |
SH-150 |
SH-170 |
|
|
Extruder |
|
90/55 |
105/55 |
120/55 |
150/55 |
170/55 |
|
Screw rotate speed |
r/min |
5-45 |
5-45 |
5-45 |
5-45 |
5-45 |
|
Foam ratio |
|
20-40 |
20-40 |
20-40 |
20-40 |
20-40 |
|
Product width |
mm |
1000-1500 |
1000-1800 |
1000-2000 |
1000-2000 |
1000-2000 |
|
Product thickness |
mm |
0.5-3.5 |
0.5-5.0 |
0.8-8.0 |
1.0-10.0 |
2.0-15.0 |
|
Cooling mode |
|
Air-cooled, water-cooled |
||||
|
Installed capacity |
kw |
90 |
100 |
120 |
150 |
180 |
|
Dimension |
mm |
20000×2300×2200 |
23000×2300×2200 |
25000×2300×2200 |
30000×2300×2200 |
32000×2300×2200 |
