PE plastic extruder for foam pipe
Products Visitors:687
- Product Name:PE plastic extruder for foam pipe
- Package:container
- Size:1800*1000*2000
- Model:SH-120
;){kind=small}
Products description:
product introduction:
Machine adopts explosio-proof motore, intelligent digital meter with safe and stable running, easy operation. Various EPE foam sheets can be produced continuously. And it can be produced foam pipe, stick and net if change relevant die and mould.
EPE foam sheet making machine adopts advanced butane physical foam technology with high foam rate. Product is the popular soft packing material in the market which is the many excellences, such as: moistureproof, shockproof, sound insulation, heat preservation and good plasticity.It's widely use for packing electronic product, glass., porcelain, furniture,commodity,etc. Also it can be used as pad of bag/box, floor-pad, sport-pad and heat preservation layer of refrigeratory.
mian technical parameter:
|
Type |
SH-90 |
SH-105 |
SH-120 |
SH-150 |
SH-170 |
|
|
Extruder |
|
90/55 |
105/55 |
120/55 |
150/55 |
170/55 |
|
Screw rotate speed |
r/min |
5-45 |
5-45 |
5-45 |
5-45 |
5-45 |
|
Foam ratio |
|
20-40 |
20-40 |
20-40 |
20-40 |
20-40 |
|
Product width |
mm |
1000-1500 |
1000-1800 |
1000-2000 |
1000-2000 |
1000-2000 |
|
Product thickness |
mm |
0.5-3.5 |
0.5-5.0 |
0.8-8.0 |
1.0-10.0 |
2.0-15.0 |
|
Cooling mode |
|
Air-cooled, water-cooled |
||||
|
Installed capacity |
kw |
90 |
100 |
120 |
150 |
180 |
|
Dimension |
mm |
20000×2300×2200 |
23000×2300×2200 |
25000×2300×2200 |
30000×2300×2200 |
32000×2300×2200 |

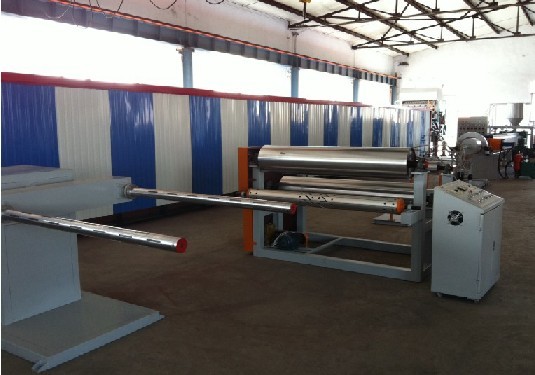

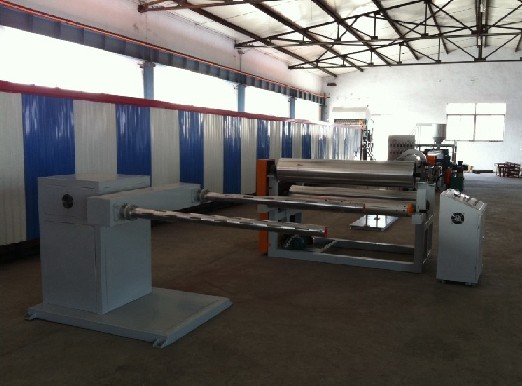

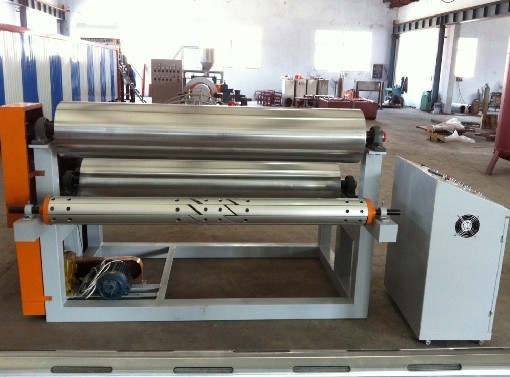

Product Images:
