product introduction:

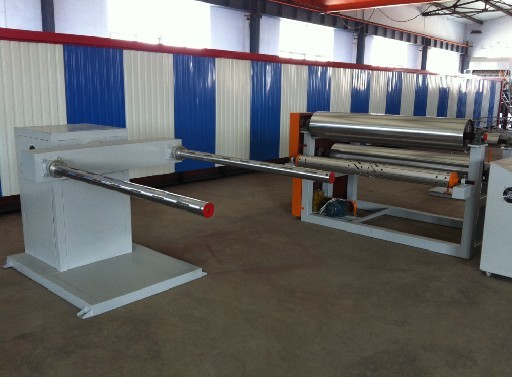

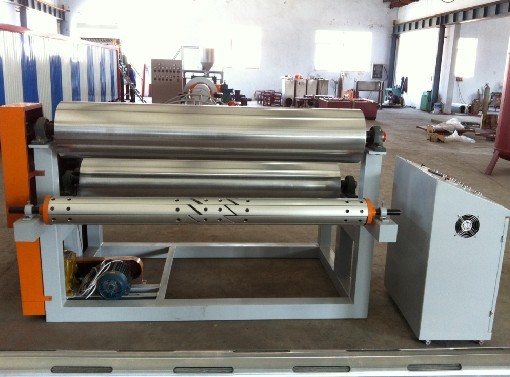

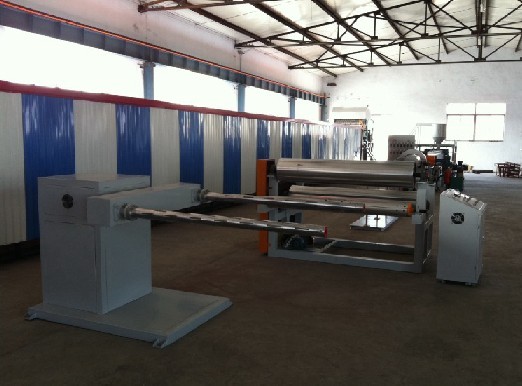

EPE Pearl Cotton Extrusion Line can make different foam sheet width and thickness according to customer requirement. Meanwhile, it can also make foam pipe, foam net, foam rod, foam profile and so on through changing mould and machine parts.

The foam sheet has the features of dampproof , shockproof, soundproof, heat preservation and good plasticity. After laminating, the foam sheet will get high dampproof performance. This products are mainly used for placing under floor.

main technical parameter:

Type		SH-90	SH-105	SH-120	SH-150	SH-170
Extruder		90/55	105/55	120/55	150/55	170/55
Screw rotate speed	r/min	5-45	5-45	5-45	5-45	5-45
Foam ratio		20-40	20-40	20-40	20-40	20-40
Product width	mm	1000-1500	1000-1800	1000-2000	1000-2000	1000-2000
Product thickness	mm	0.5-3.5	0.5-5.0	0.8-8.0	1.0-10.0	2.0-15.0
Cooling mode		Air-cooled, water-cooled
Installed capacity	kw	90	100	120	150	180
Dimension	mm	20000×2300×2200	23000×2300×2200	25000×2300×2200	30000×2300×2200	32000×2300×2200
