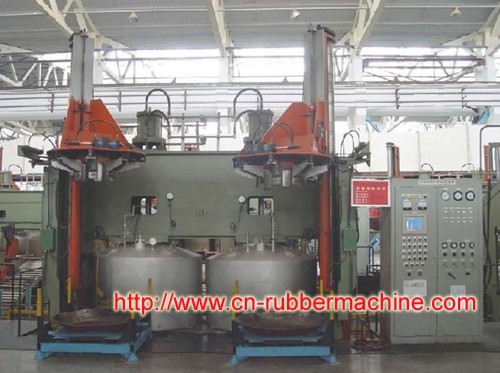

Tyre Shaping and Curing Press:

Function:

Tyre Curing Press works for the vulcanization of TBR, PCR tires or bias tires.

Note:

1. It works for the vulcanization of TBR, PCR tires or bias tires.

2. If it works for curing the bias tires, the press will match with post curing inflator.

3. If it works for curing the radial tires, the press will match with segmented mould controller.

Technical Parameter:

Model	LL-B1640X2	LL-B1525X2	LL-B1370X2	LL-B1310X2	LL-B1145X2	LL-B1050x2
Steam dome specification	(65.5″)1640mm	(63.5″)1525mm	(57″)1370mm	(55″)1310mm	(45″)1145mm	(42”)1050mm
Max mould closing force	4350X2KN	4220X2KN	2950X2KN	2890X2KN	1720X2KN	1320x2
Height of mould	254-635	254-635	245-445	245-445	203-340	180～300mm
Power of main motor	16Kw	13Kw	13Kw	13Kw	11Kw	11Kw
Apply bead specification	19″-24.5″	19″-24″	16″-20″	16″-20″	12″-17″	12～16"
