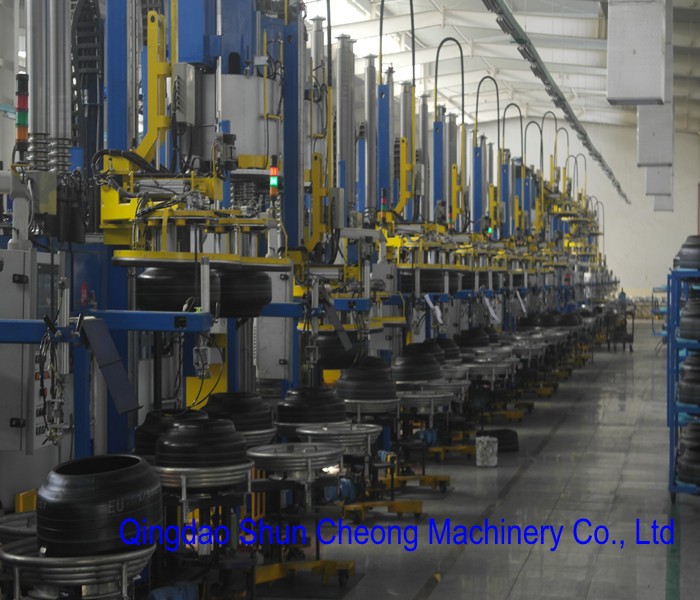

HLB48〞Column Hydraulic Dual-Mould Radial Tire Curing Press
This curing machine is collaboratively researched and developed with the German company Krupp which is the latest international structure, the highest accuracy and performance of the most advanced hydraulic vulcanizing machine. This curing press uses column-oriented structure and automatic operation. The main technical indicators compared to the national standard value increased by 50%, and production efficiency improved by 50%, energy saving compared to conventional vulcanizing machine increased by 50% or more.
|
Model Technical Parameters |
HLB48〞 |
|
Structure |
Column |
|
Mould opening way |
Vertical |
|
Center mechanism mode |
B |
|
Mould heating |
heating plate |
|
Mould quantity |
2 |
|
Max. Mould closing force(KN) |
1800 |
|
Mould height |
250～520 |
|
Curing Room Inner Diameter(mm) |
1220 |
|
Applied bead specification(Inch) |
10～13 |
|
Weight(KG) |
20000 |
|
Overall Size(L×W×H)(mm) |
3750×1850×4500 |
