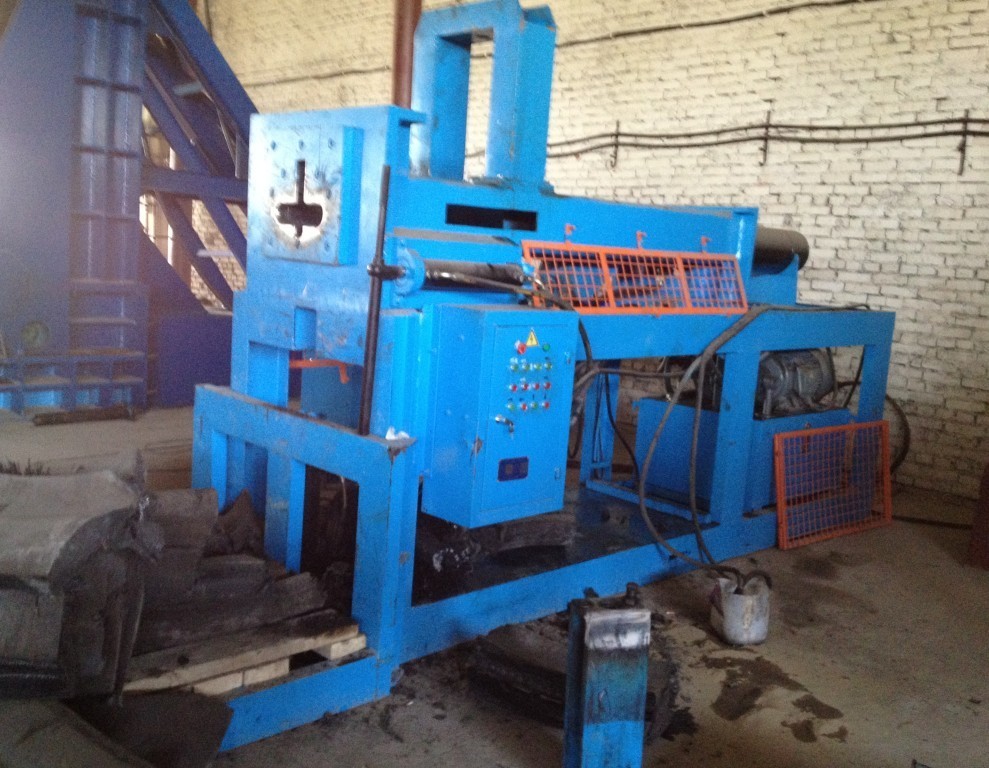

Single hook tire debeader includes motor, hydraulic system, retractor, pull the mouth, body and other components. The basic principle is: the hydraulic system driven by the motor and cylinder retractor connected to the fuel tank trolley, retractor for reciprocating pumps, cylinder movement prompted. The start button after the tire in the pull-mouth, the retractors thrust mouth hooked tire inner ring wire parts. Due to a strong tension of the cylinder, the wire is pulled whole tire side portion due to the pull-up mouth function, prompting rubber tear, and thus play a smooth separation purposes. The main features are as follows:

1.1 retractors, Vane main components are the specialty materials, made of specially treated high strength, wear-resistant and durable.

Constant power variable piston pump 3.2 Hydraulic system adopts international advanced technology, low noise, high pressure, and improve the life of the equipment and the safe operation of the control system.

1.2 manual control tire upgrade and brushed forward and backward movement, stable and reliable, and accurate positioning, improve work efficiency.

1.3 The equipment has a tire lifting device, different tires can be easily placed, to reduce the amount of labor, and higher yield.
