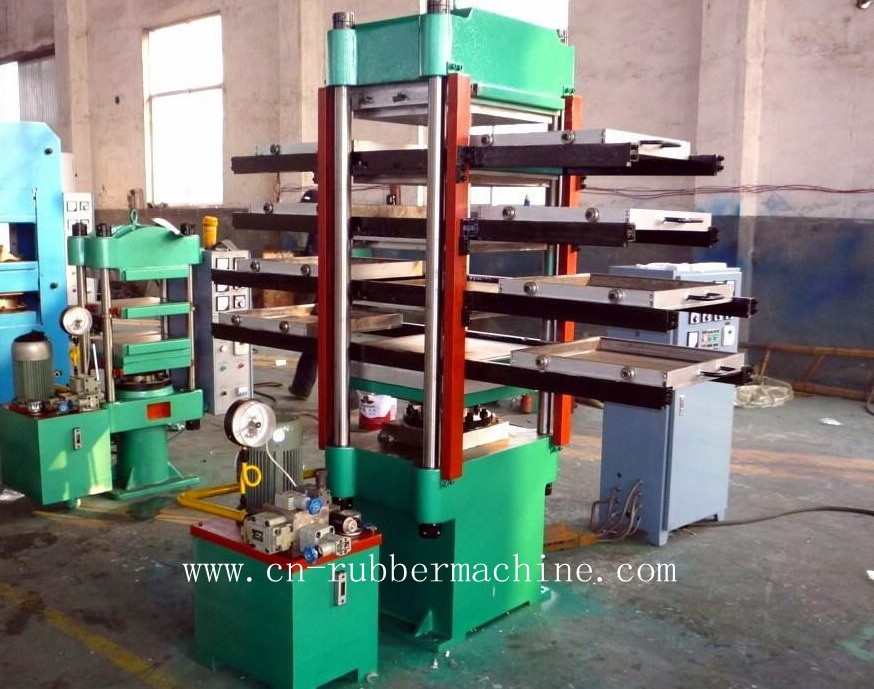

Rubber Tiles Vulcanizing Machine used to produce rubber tiles.

Application and features:
1. This press is specially used to produce rubber tiles.
2. Each layer is matched with two sets of moulds, so it can be vulcanized batch by batch for better efficiency.
3. The press is adopted with manual mould push-out device, so the operation is more convenient.



Model	XLB-D550×550×4	XLB-D650×650×2
Total pressure (MN)	0.5	1.35
Plate size (mm)	550×550 (Q235)	650×650 (Q235)
Daylight (mm)	150	200
Daylight no.	4	2
Piston stroke (mm)	400	400
Motor power (KW)	3.0	3.0
Overall size (mm)	2200×900×2200	2200×1200×2400
Weight (mm)	3600	5000
