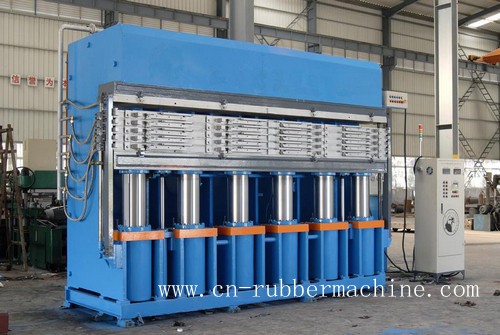

1000T Tyre Tread Vulcanizing Press Main Used Vulcanization of the tire tread.
Introduction:
1. 4 dual-action cylinders with movable beam, which rise and fall quickly to generate opening force, reducing electricity consumption
and preventing hydraulic pressure oil used from getting hot;
2. Pneumatic rotating mechanism is adopted to achieve multi-step deflation;
3. Automatic mold forward/backward, or squared axis cantilever hanging heating platen applicable for rapid left and right feeding and
discharging by adding clamping robot;
4. PLC control method.
5. Unit area pressure no less than 45kg/cm² To ensure the density of the tire-surface
6. Multiple options of layer number and tables;
7. Hydraulic pressure components and electrical equipment imported or of local famous brand, to ensure reliable performance.
|
Type
|
XLE-Q3700x406x1
|
XLE-Q5000x400x3
|
XLE-Q5200x700x3
|
|
Total Pressure (Tons)
|
525
|
1000
|
1668
|
|
Plate Size (mm)
|
3700X406X70
|
5000x400x700
|
5200x700x800
|
|
Daylight (mm)
|
250
|
150
|
150
|
|
Layer NO.
|
1
|
3
|
3
|
|
Piston Stroke (mm)
|
250
|
450
|
450
|
|
Open/Close Mould Speed (mm/s)
|
≥15
|
≥15
|
≥15
|
|
Cylinder Diameter (mm)
|
260
|
285
|
500
|
|
Cylinder NO.
|
6
|
8
|
5
|
|
Motor Power (KW)
|
5.5
|
11+5.5
|
13+5.5
|
