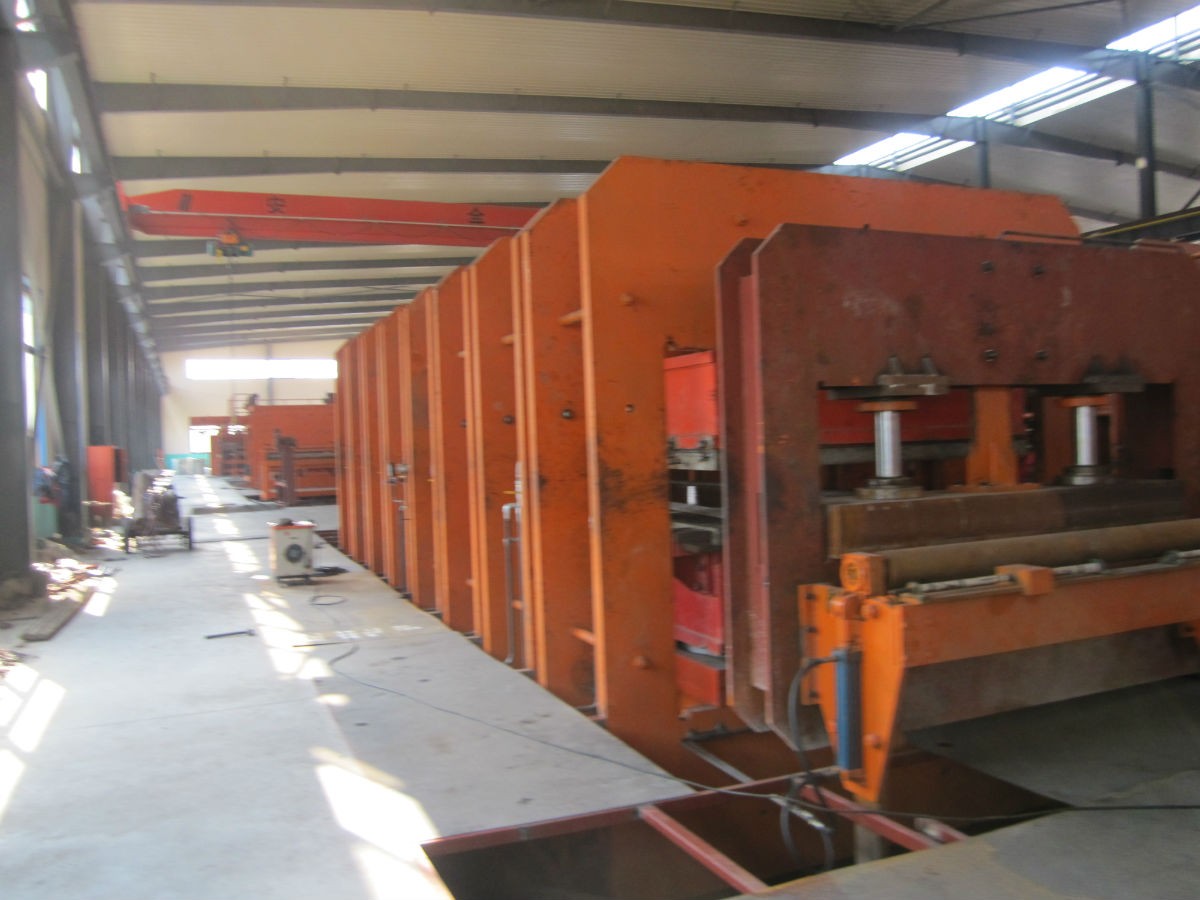

Conveyer Belt Vulcanizing Press is mainly used for vulcanizing giant conveyer belt such as nylon conveyer belt, common conveyer belt, anti-fire conveyer belt, wire rope conveyer belt etc.
Characteristics:
1. This Conveyer Belt Vulcanizing Press is of high automation level and compact advanced structure.
2. The main machine is of frame structure and equipped with special purpose hydraulic unit.
3. Both the hot plates and piston plunger are all made of superior material, they are accurately processed and have high etch and wear resistance.
4. The control system has been taken up with PLC so as to realize multi program automatic control of curing process, for example, the temperature of the hot
plates can be measured and regulated automatically. This will improve the control level and provide with high efficiency of production and low intensity of labor.
Parameter
XLB-1800X
12000*2
XLB-1800X
10000*2
XLB-1600X
10000*2
XLB-1600X
1000*1
XLB-1600X
8500*1
XLB-1400X
1000*1
XLB-1400X
8000-2
XLB-1400X
5700*2
XLB-1100X
5700*2
Hot-plate
Size(mm)
1800*12000
1800*1000
1600*10000
1600*10000
1600*8500
1400*10000
1400*8000
1400*5700
1100*5700
Total
Pressure(MN)
74.00
72.00
56.00
64.00
47.60
49.00
34.00
25.00
17.55
Hot-plate
Unit Pressure(MN)
3.4
4.0
3.5
4.0
3.5
3.5
3.1
3.13
2.8
Plunger
Diameter(mm)
500
500
450
500
500
450
400
360
500
Plunger
NO
18
18
18
18
14
18
16
10
5
Max.
Plunger Stroke(mm)
400
300
400
300
300
300
400
400
520
Gripping
Strength(MN)
1.20
1.50
1.20
1.20
0.6
0.90
1.00
0.72
0.50
Tension
Force(MN)
1.10
1.2
1.10
1.0
0.5
0.80
0.90
0.60
0.40
Steam
Pressure(Mpa)
0.63
0.6-0.8
0.63
0.6-0.8
0.63
0.63
0.63
0.63
0.63
Cooling
Water Pressure(Mpa)
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
Controlling
Method
PLC
PLC
PLC
PLC
PLC
PLC
PLC
PLC
PLC
Dimension(L)
12000
1000
10000
10000
8500
10000
8000
5700
5700
Dimension(W)
2900
2740
2660
2560
2980
2400
2400
2350
1800
Dimension(H)
3930
3660
4120
3520
3325
3580
3880
4170
3305
