The machine applies to vulcanizing various kinds of rubber and plastic model products as well as non-model products.

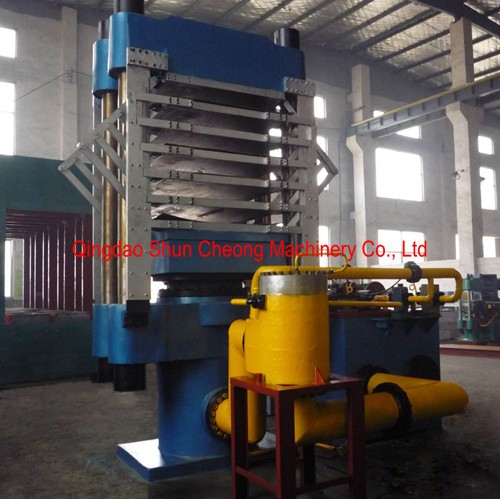

Model XLB-D1200x1500x5 plate vulcanizing press
Total pressure: 800t (8MN)
Plate size: 1200x1500x70mm
Working layer: 6 plates 5 opening
Heating type: Steam heating
Control type: PLC control.
Daylight opening: 150mm
Dia of piston: 750mm
Stroke of piston: 750mm
Motor power: Approx 22.5 kw
Hot-plate unit press: 4.4 MPa
Structure type: Four-poles.
| Model | XLB-DQ1000×1500×3/8.0 MN | XLB-DQ1000×1500×4/8.0 MN |
| Total Pressure (Ton) | 800 | 800 |
| Plate Size (mm) | 1000x1500x70 | 1000×1500×70 |
| Daylight (mm) | 125 | 125 |
| Plate Unit Pressure (Mpa) | 5.3 | 5.3 |
| Working Layer |
3 (4 plates 3 opening) |
4 (5 plates 4 opening) |
| Piston Stroke (mm) | 375 | 500 |
| Close Mould Speed (mm/s) | ≥45 | ≥45 |
| Open Mould Speed (mm/s) | ≥400 | ≥400 |
| Cylinder Diameter (mm) | Φ750 | Φ750 |
| Cylinder NO. (Set) | 1 | 1 |
| Motor Power (kw) | 26 | 26 |
| Heating type | Electric or steam heating | Electric or steam heating |
| Control type | PLC control. | PLC control. |
| Structure type |
four-poles |
four-poles |
| Weight (kg) | Approx 31000 | Approx 32000 |
