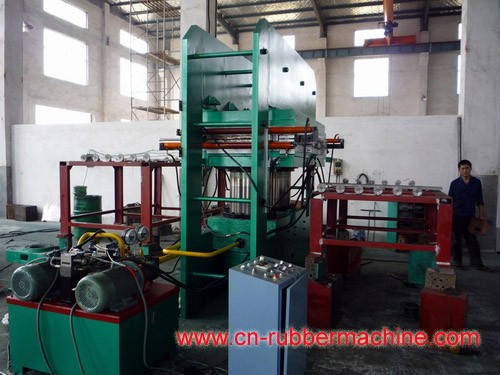

Auto Mould Ejecting Vulcanizing Press used for all kinds of vulcanizing mould, rubber and plastic mould products, and non-mould products.
Being a column structure and downward pressing type, the heating plate opens by the self-weight of the heating plate, platform and plunger. The rising of the plunger makes the heating plate close while the hydraulic oil provides the pressure.
1. Mould ejecting device works with hydraulic and mechanical type.
2. Customers can choose according to their needs.
3. New design concept, strong technical force and advanced manufacturing processes of the machine ensures that each device can be manufactured to meet customer's individual requests.
Type
|
XLB-D1000×1000/3.15MN
|
Total Pressure (MN)
|
3.15
|
Plate Size (mm)
|
1000x1000
|
Daylight (mm)
|
500
|
Daylight NO.
|
1
|
Piston Dia. (mm)
|
500
|
Unit Pressure (Mpa)
|
3.15
|
Overall Dimension (mm)
|
1800×1350×2100
|
Weight (kg)
|
15000
|
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() | |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
