6 cylinder deutz air cooled engine F6L914 for construction



Products Visitors::112


Product Detail

Product Images

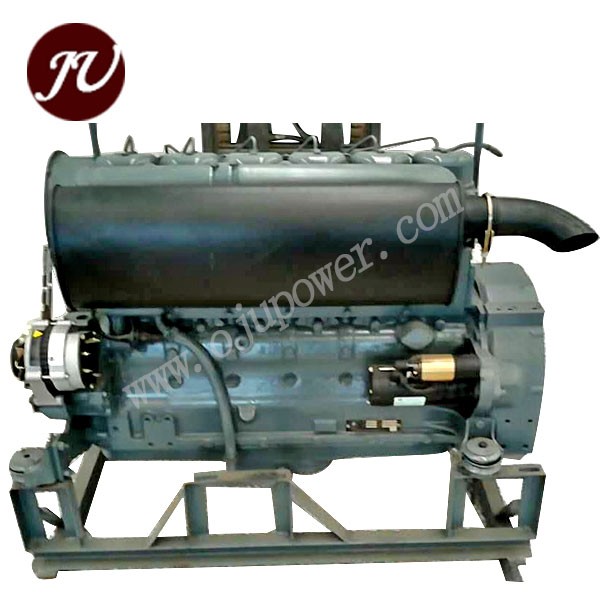

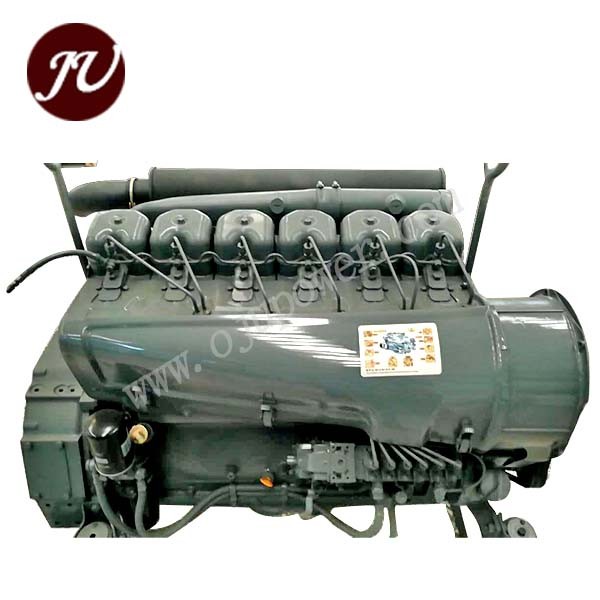

Original deutz engine F6L914 for construction, generator etc.

Engine 914 detail:

914 Series
Engine Model F4L914 F6L914 BF6L914 BF6L914C
Cyl NO.and Arrangement 4-Cyl in-lin 6-Cyl in-lin 6-Cyl in-lin 6-Cyl in-lin
Air-intake way Natural intake Natural intake Turbo-charged  Turbo-charged cooling
Cooling system and stroke Air-cooled 4-stroke Air-cooled 4-stroke Air-cooled 4-stroke Air-cooled 4-stroke
Displacement(L) 4.314 6.472 6.472 6.472
Bore/Stroke(mm) 102*132 102*132 102*132 102*132
Compression Ratio 201 181 181 181
Power/Rev    kW/rpm 2300 50 79 112 125
Power/Rev    kW/rpm 2500 56 85 115 137
Max torque(N.m) 270 400 550 690
at speed(rpm) 1600 1600 1600 1600
Minimum idle speed(rpm) 750 750 750 750
Specific fuel consumption
(g/kW.h)
209 209 206 206
Weight(kg) 310 420 485 510

More other Genuine Deutz engine:

Common Rail Series
Engine Model F3L912E F4L912E F6L912E F4L914E F6L914E BF6L914
Cyl NO.and Arrangement 3-Cyl in-lin 4-Cyl in-lin 6-Cyl in-lin 4-Cyl in-lin 6-Cyl in-lin 6-Cyl in-lin
Air-intake way Natural intake Natural intake Natural intake Natural intake Natural intake Turbo-charged
Cooling system and stroke Air-cooled 4-stroke Air-cooled 4-stroke Air-cooled 4-stroke Air-cooled 4-stroke Air-cooled 4-stroke Air-cooled 4-stroke
Displacement(L) 2.828 3.77 5.655 4.314 6.472 6.472
Bore/Stroke(mm) 100*120 100*120 100*120 102*132 102*132 102*132
Compression Ratio 171 171 171 201 18∶1 18
Power/Rev    kW/rpm 2300 36 46 74 56 87 112
Power/Rev    kW/rpm 2500 38 51 78 59 89 118
Max torque(N.m) 165 230 345 270 400 550
at speed(rpm) 1600 1600 1600 1600 1600 1600
Minimum idle speed(rpm) 750 750 750 750 750 750
Specific fuel consumption
(g/kW.h)
221 221 221 209 209 206
Weight(kg) 275 300 410 310 420 485
912 Series
Engine Model  F2L912 F3L912 F4L912 F4L912T F6L912 F6L912T
Cyl NO.and Arrangement 2-Cyl in-lin 3-Cyl in-lin 4-Cyl in-lin 4-Cyl in-lin 6-Cyl in-lin 6-Cyl in-lin
Air-intake way Natural intake Natural intake Natural intake Turbo-charged Natural intake Turbo-charged
Cooling system and stroke Air-cooled 4-stroke Air-cooled 4-stroke Air-cooled 4-stroke Air-cooled 4-stroke Air-cooled 4-stroke Air-cooled 4-stroke
Displacement(L) 1.88 2.828 3.77 3.77 5.655 5.655
Bore/Stroke(mm) 100/120 100/120 100/120 100/120 100/120 100/120
Compression Ratio 171 171 171 171 171 171
Power/Rev    kW/rpm 2300 20 36 46   74
Power/Rev    kW/rpm 2500   38 51   78
Max torque(N.m) 105 170 230   345
at speed(rpm) 1600 1600 1600 1600 1600 1600
Minimum idle speed(rpm) 750 750 750 750 750 750
Specific fuel consumption
(g/kW.h)
230 221 221   221
Weight(kg) 245 275 300 315 410 420
