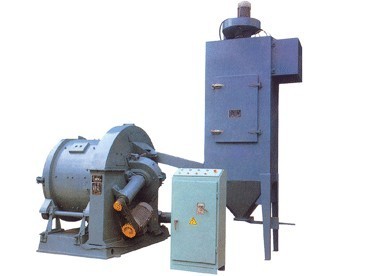

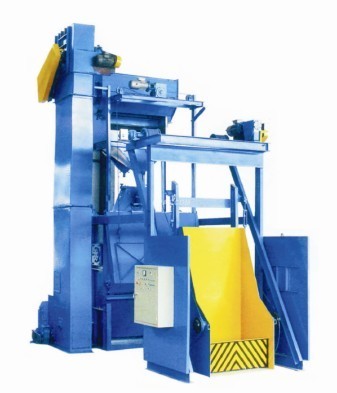

Q31 shot blasting machine
1/
Product description:
Features:
Strengthen shot blast cleaning machine, applies to surface cleaning of various parts, where a variety of metal casting surface sticky sand clean-up, black metal parts, surface rust, stamping parts surface burrs and flash down blunt, forging and heat treatment of the workpiece surface treatment and spring surface oxide removal and surface of the grain refinement, etc. can be accessed through the device of the series shot blasting strengthening process.
Scope of application:
Foundry, heat treatment plant, electrical plant, machine tool accessories factory, bicycle parts, plant, power train yard, auto parts factory, motorcycle accessories factory, non-ferrous metal die-casting factory, etc.
2/
Technical parameters of Q31 series blast cleaner |
||||||
Serial number |
Item |
Type |
Q311BⅠ |
Q311BⅡ |
Q3110BⅠ |
Q3110BⅡ |
1 |
Diameter of rolling drum |
Mm |
1300 |
1300 |
1000 |
1000 |
2 |
Loading capacity |
Kg |
600 |
600 |
300 |
300 |
3 |
Productivity |
Kg/h |
250-3500 |
2500-3500 |
600-1500 |
600-1500 |
4 |
Power(exulting deduction) |
Kw |
14.5 |
16.3 |
9.7 |
11.9 |
5 |
Maximum weight of workpiece |
Kg |
30 |
30 |
15 |
15 |
6 |
Rotational speed of rolling drum |
r/min |
2.5 |
2.5 |
3 |
3 |
7 |
Abrasive flow rate |
Kg/min |
160 |
160 |
120 |
120 |
8 |
Ventilation capacity |
M3/h |
2000 |
2800 |
800 |
2000 |
9 |
Deduction efficiency |
% |
85 |
99 |
85 |
99 |
10 |
Outline dimensions |
Mm |
2550*2341*2250 |
4362*2341*2250 |
2078*2458*1861 |
3870*2458*3370 |
