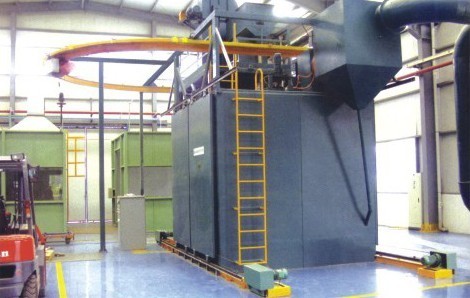

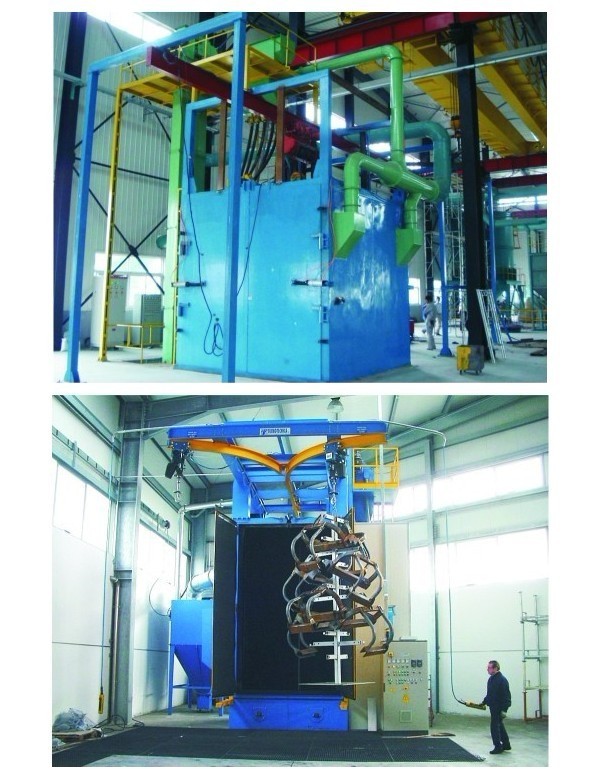

Q37 hook shot blasting machine
1/
Hook type shot blasting machine can be used in machinery manufacturing (including light industrial machinery, construction machinery, construction machinery, mining machinery, etc.), small and medium-sized castings and forgings for pressure vessels, automotive, shipbuilding, construction, chemical, electrical, machine tool industry surface cleaning or enhancement, is used to improve the appearance quality of the product components and state of the surface craft. Particularly suitable for:
1) multi-species, small quantities of castings, forgings and steel structure surface cleaning and strengthening in order to remove the surface of a small amount of sticky sand, sand core and oxide;
2) heat treatment, surface cleaning and strengthening;
3) should not be collisions of slender, thin-walled clean-up.
Casting machined surface after shot blasting cleaning easy under the machining process, not only can save processing time, and to protect the machine and the tool from damage; non-machined surface after painting, the prolonged off, improve product life and appearance quality.
2/
Tcchnical parameters of Q37 series air ese blast cleaner
|
||||||||||
Serial number |
Item |
Type |
Q376F |
Q378 |
Q3710 |
QD3710 |
Q3720 |
Q3730 |
Q3750 |
Q3780 |
1 |
Size of cleaning piece |
Mm |
600*1100 |
800*1500 |
900*1600 |
900*1600 |
1400*2300 |
1600*2200 |
1800*2500 |
2000*3000 |
2 |
Carry weight of single hool |
Kg |
600 |
1000 |
1000 |
1000 |
2000 |
3000 |
5000 |
8000 |
3 |
Abrasive flow rate |
Kg/min |
2*120 |
2*200 |
2*250 |
2*250 |
3*250 |
3*250 |
4*250 |
4*250 |
4 |
Lifting amount of elevating conveyor |
t/h |
15 |
22 |
30 |
30 |
45 |
45 |
60 |
60 |
5 |
Separating amount of separator |
t/h |
15 |
22 |
30 |
30 |
45 |
45 |
60 |
60 |
6 |
Ventilation capacity |
M3/h |
5000 |
8000 |
9000 |
9000 |
15000 |
15000 |
18000 |
20000 |
7 |
Power |
Kw |
19 |
32.5 |
36.55 |
39.55 |
61.27 |
64.4 |
78.4 |
81.5 |
8 |
Outline dimensions |
Mm |
4429*2850*3443 |
4325*2660*5009 |
5047*3850*5156 |
5844*2742*5716 |
6110*3599*7842 |
7085*4650*8652 |
7062*5460*8652 |
8050*6400*8526 |
