Q38 shot blasting machine
- Product Name:Q38 shot blasting machine
- Model:Q38
- Size:15308*14706*9542 and so on
- Package:standard package
;){kind=small}

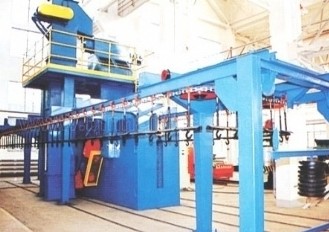

Q38 shot blasting machine
1/
Details

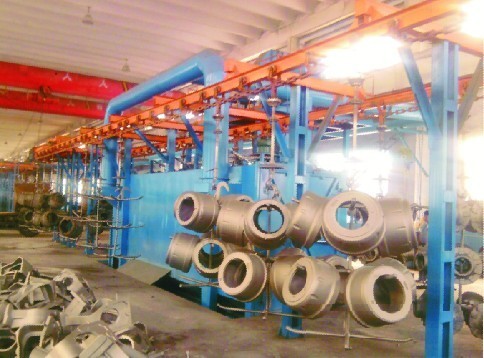

The catenary abrator suitable for small pieces of cast iron, steel castings, forgings and stampings shot blasting, particularly suitable for forging, casting cleaning to remove the sticky sand on the surface, rust, oxidation leather dirt, so that the workpiece surface showing a metal color, eliminate internal stress and improve fatigue resistance, increase workpiece paint film adhesion, and achieve the purpose of workpiece surface and internal quality. Improve the fatigue performance of mechanical products and metal profiles of anti-corrosion and steel and prolong life. Optimize the process of steel surface state to fully clean up the purpose。
2/
|
Serial number |
Item |
Type |
Q383C |
Q384C |
Q385 |
|
1 |
Productivity |
Hook/h |
50,65 38,49 |
70,80 |
75 |
|
2 |
Running speed of hook |
m/min |
0.5,0.65 |
0.8,0.93 |
0.65 |
|
3 |
Carrying weight of single hook |
Kg |
250 |
400 |
500 |
|
4 |
Interval between lifting hooks |
Mm |
600,800 |
800 |
800 |
|
5 |
Abrasive flow rate |
Kg/min |
4*250 |
6*250 |
5*250 |
|
6 |
Ventilation capacity |
M3/h |
18000 |
26500 |
23700 |
|
7 |
Size of cleaning piece |
Mm |
500*1200 700*1200 |
700*1500 |
700*1500 |
|
8 |
Outline dimensions |
Mm |
11764*5525*8254 |
15308*14706*9542 |
11786*10063*7500 |
|
9 |
Pit depth |
Mm |
2070 |
2667 |
1700 |
|
10 |
Power consumption(excluding dedusting) |
Kw |
75.3 |
122.6 |
106.75 |
|
11 |
Gross weight of machine |
kg |
19370 |
53600 |
31877 |
