Overhead shot blasting machine
Products Visitors:1318
- Product Name:Overhead shot blasting machine
- Model:Q383,Q385,Q483,Q485
- Package:Customer
;){kind=small}
Products description: Overhead shot blasting machine
Overhead shot blasting machine
Our company can design and manufacture machines according to user's requirements.
Depending on the height of the machine, the installation may require a pit. The shot-blasting unit is supplied complete with a self-cleaning dry cartridges dust collector.
| Technical specification: | |||||||
| No | Item | step moving type shot blasting machine | Continuous moving shot blast machine | ||||
| Q483 | Q485 | Q4810 | Q583 | Q5810 | |||
| 1 | Max weight of piece | kg | 300 | 500 | 800 | 300 | 1000 |
| 2 | Size of workpiece | mm | 1000*1400 | 1200*1700 | 700*2400 | 1000*1500 | 750*2400 |
| 3 | Abrasive flow rate | kg/m | 2*250 | 3*250 | 6*360 | 4*250 | 6*360 |
| 4 | Productivity | Hook/h | 10 | 10 | 10 | 30-60 | 50 |
| 5 | Speed of chain | m/min | 2.44 | 7.34 | 2.44 | Converter speed | |
| 6 | Lifting distance of pendant chain | mm | 2560 | 2560 | 2560 | 1000 | |
| 7 | Ventilation capacity | M3/h | 6000 | 10000 | 25000 | 18000 | 25000 |
| 8 | Power(not include dust collector) | kw | 38.75 | 58.43 | 85 | 127.25 | 160 |
| 9 | Outline dimension | mm | 8450*5350 | 12235*5410 | 4500*5350 | 18000*5960 | 17700*9615 |
| *5003 | *9411 | *5003 | *6440 | *10000 | |||

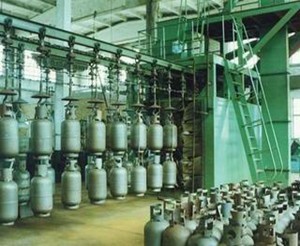

Product Images:Overhead shot blasting machine
