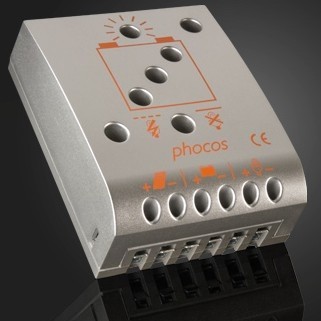

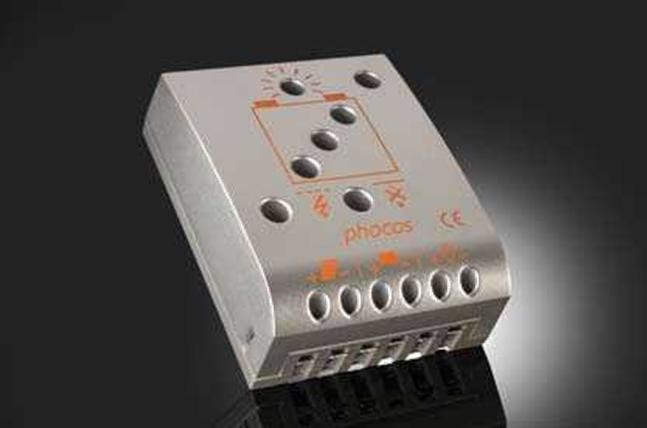

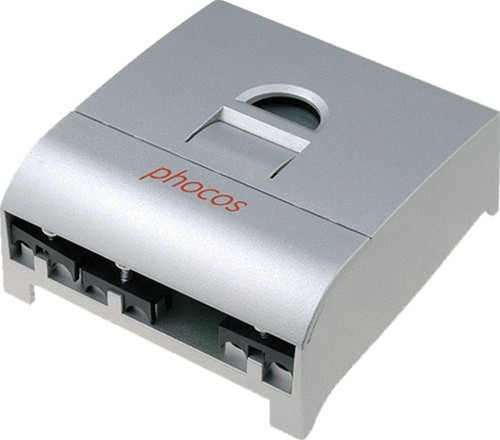

Phocos solar charge controller
Specification
|
Type |
CML 05 |
|
System Voltage |
12/24 V auto recognition |
|
Max. Charge/Load Current |
5 A |
|
Float Charge |
13.7/27.4 V (25°C) |
|
Boost Charge |
14.4/28.8 V (25°C), 2Std. Activation:battery voltage<12.3/24 |
|
Equalization |
14.4/29.6 V (25°C), 2Std. Activation:battery voltage<12.1/24 |
|
Deep Discharge Protection State if Charge Dependent Voltage Dependent Reconnect Level |
11.4-11.9 V/ 22.8-23.8 V 11.0/22.0 V 12.8/25.6 V |
|
Overvoltage Protection |
15.5/31.0 V |
|
Undervoltage Protection |
10.5/21.0 V |
|
Max.Panel Voltage (Overvoltage Protection by Varistor) |
30V in 12 V system 50 V in 24 V system |
|
Temperature Compensation(Charge Voltage) |
-25 mV/K at 12 V -50 mV/K at 24 V |
|
Max.Self Consumption |
<4 mA |
|
Grounding |
Positive grounding possible |
|
Ambient Temperature |
-40 to +50°C |
|
Max. Height |
4,000 m above sea level |
|
Battery Type |
Lead acid (GEL,AGM flooded) |
|
Wire Cross Section |
< 16 mm² |
|
Weight |
160 g |
|
Dimension(B×H×T) |
80×100×32 mm |
|
Type of Protection |
IP 22 |
Feature
1.Battery state of charge display with 3 LEDs
2.Acoustic load disconnect pre-warning
3.PWM-regulation
4.Boost, equalize and float charging, also for VRLA
5.Automatic 12/24 V detection
6.Integrated temperature compensation
7.Large terminals (up to 16 mm² wire size)
8.SOC and voltage controller LVD
9.Fully electronically protected
