MOTOR DATA

Model

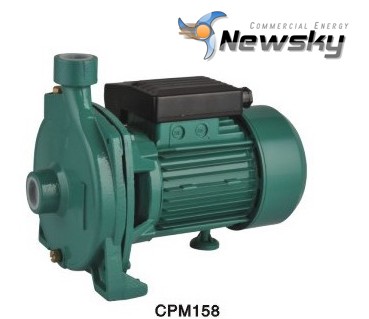

CPM158

Power

0.75kw/1.0hp

Max flow

110L/min

Max head

30m

Max suction

8m

Inlet

1”

Outlet

1”

GW

13kg

Dimension

32*21*27cm/box

20FT

1300pcs

warranty

One year

TECHNICAL DATA

Max temperature of fluid

<80°C

Max ambient temperature

<40°C

Max working pressure

10bar

Single phase

220V±5%/50HZ

Suitable water

Clean water

MOTOR

Degree of protection

IP44

Insulation class

B

MATERIALS

Pump body

Cast iron

Motor body

Aluminum

Impeller

Plastic

Shaft

45# steel
