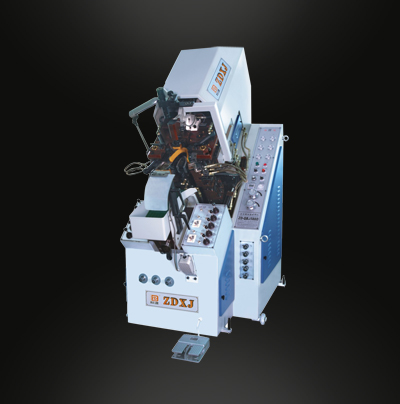

Model: ZD-QBJ588D
Dimensions: 1650*1000*1995MM
Packing size: 1750*1100*2195MM
Productivity: 2000-2500Pairs/8Hours
Weight: 1200KGS
Power: 2HP
Voltage: 380V 50HZ / 220V 60HZ
Hydraulic oil: No.46 of anti-abrade oil
1. The design of regulation free of to head pressing stroke supplies surely very stable pressing force, unaffected entirely by oil temperature and pressure difference.
2. The design of 7MM viper mould with nine calw angular device of used to keep the shoe upper connect firmly, and waists' dadian more identical with shoe tree and waist's upper bound easily.
3. The newly designed forward and backward adjusting mechanism for last support plates can quickly adjust the pincers according to the different sizes of shoes.
4. The newly designed synchronous descending function for last support plates, which can change the pincer quickly without removing the outer support.
5. All-around forming band and specially tracked wipers ensure uppers more evenly and closely attached to lasts after lasting, no protrusion will happen. The surface becomes more beautiful and quality upgraded.
6. The pressure and speed for each mechanism can be adjusted and the pressure meter is also installed at the outside of the machine which makes the operation and adjustment more conveniently.
