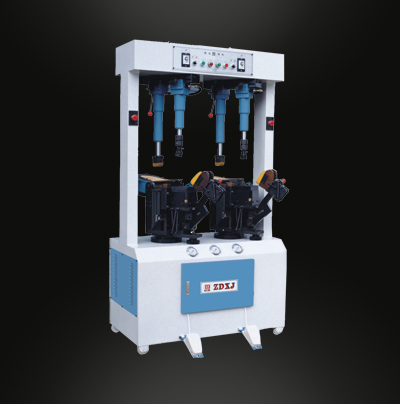

Model: ZD-XYHY20024
Dimensions: 1600*820*1920MM
Packing size: 1700*920*2120MM
Productivity: 2500-3000pairs/8hours
Weight: 1200KGS
Power: 3HP
Voltage: 3phase 380V 50HZ/ 3phase 220V 60HZ
Hydraulic oil: No.46 of anti-abrade oil
CHARACTERISTICS:
1. This machinery is applicable for the pressing work of shoes outsoles, such as outsole, hemming-out sole, cyathiform outsole and other special outsoles.
2. Full hydraulic system offers large pressing strength, making the attaching tightly and firmly.
3. Plumb pressing, side pressing and force-and-aft pressing can be completed at one time or in their respective step, and therefore this machinery is available for many styles of shoes.
4. The latex mould suits any size of shoes and any shaped heels, which is needless of regulations.
5. Side pressing adopts the design of multi cylinders close-arrayed and rebalance system, which well meets irregular side contour, and offer compressive stress evenly without any blind spot of strength, and with no mention interstices.
6. In plumb pressing, the laying angle of shoes on working chamber is adjustable to find optimal position promoting outsole attaching tightness.
7. The pressing rods can be set to swing aside automatically, shoes like the kinky boots are very easy pulled on and took off.
8. Pressing rods do not need adjust for different shoes, and it is easy to operate.
