Introduction

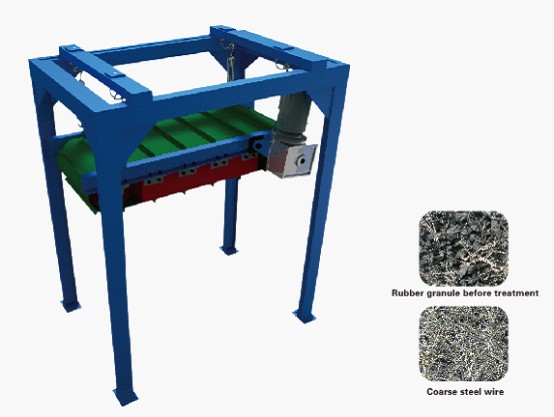

The DCT Belt Iron Separator is used to separate iron objects mixed in the rubber granules to prepare for next processing. It mainly consists of electro-magnetic, motor, conveying belt, roller cylinder, machine frame and control cabinet, etc.
Structure and Principle
◆The machine use electro-magnetic which has stepless adjustable strong attraction force and depth, is 5-10 times more attractive than ordinary high performance magnetic. With such features as strong magnetic force, quick demagnetization and deep attraction;
◆By using heat-proof belt for conveying steel wire, the friction of the rollers is increased, even big steel wires can be separated completely;
◆The electro-magnetic is suspended onto the machine frame, the height of which can be adjusted to get suitable attraction distance.
Technical Date
Model |
500 |
Capacity(Kg/H) |
400~800 |
Belt width(mm) |
500 |
Separation efficiency(%) |
99 |
Motor power(Kw) |
1.5 |
Adjusting height(mm) |
200 |
Weight(T) |
0.65 |
