Introduction

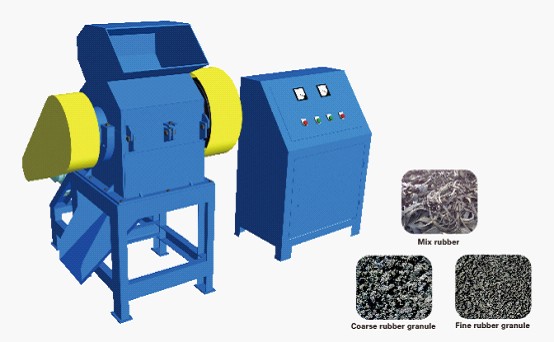

The machine is used for pre-crushing process for various rubber, plastic, chemical and herbal medicine. It is mainly composed of motor, v belt pulley, machine frame, screen supporter, screen, discharging outlet and control cabinet, etc.
Structure and principle
The machine adopts hard alloy or wear-proof steel blades, can crush various kind hard materials coarsely. The raw materials are crushed by the cutting of rotary and fixed blades. Output size is controlled by the screen. The machine has water cooling system to control the crushing temperature and ensure good output quality.
Technical Date
Model |
400A |
500A |
Capacity(Kg/H) |
60~800 |
100~1000 |
Main shaft speed(RPM) |
600 |
600 |
Feeding size(mm) |
≤200×30 |
≤250×30 |
Output size(mesh) |
2~20 |
2~20 |
Motor power(Kw) |
15 |
22 |
Weight(T) |
0.9 |
1.1 |
Dimension(m) |
1.1×1×1.6 |
1.4×1.2×1.6 |
