The drying machine's characteristic is high collection rate, no stick onto the wall, energy saving, high efficiency.
Descriptions:

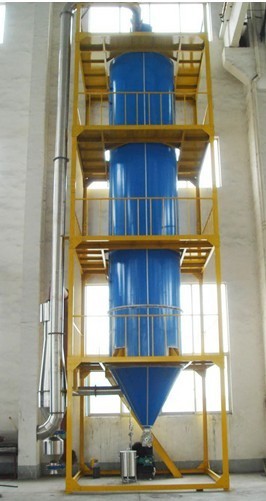

The material is sprayed into fine mist by nozzle on the top of tower. Follow the heat wind, the material is dried. The machine's characteristic is high collection rate, no stick onto the wall, energy saving, high efficiency, especially applicable for heat sensitive material. It's widely used in food, dyestuff, chemical industry and so on.
Applications:
Food Industry Fatty milk powder, protein, cocoa milk powder, substitute milk powder, egg white (yolk), food and plant, oats, chicken juice, coffee, instant dissoluble tea, seasoning meat, protein, soybean, peanut protein, hydrolyses and so forth. Sugar, corn syrup, corn starch, glucose. Pectin, malt sugar, sorbet acid potassium and etc.
Medicine: Traditional Chinese medicine extract, ointment, yeast, vitamin, antibiotic, amylase, lipase and etc.
Plastics and resin: AB, ABS emulsion, uric acid resin, phenol Alde Hyde resin, urea-formaldehyde resin, formaldehyde resin, polythene, poly-chloroprene and etc.
Detergent: Common washing powder, advanced washing powder, soap powder, soda ash, emulsifier, brightening agent, orthophosphoric acid and etc.
Chemical industry: Sodium fluoride (potassium ), alkaline dyestuff and pigment, dyestuff intermediate, Mn3O4, compound fertilizer, formic silica acid, catalyst, sculpture acid agent, amino acid, white carbon and so on.
Ceramic: Aluminum oxide, ceramic tile material, magnesium oxide, talcum and so on.
Other: Calmogastrin, satiric acid agent and the cooling spray.
Model | YPG-25 | YPG-50 | YPG-100 | YPG-150 | YPG-200 | YPG-300 |
Air inlet temperature | 140-550° C, adjustable as per production requirements | |||||
Air exhaust temperature | 70-110° C, as per production requirements | |||||
Nom. water evp capacity (kg/h) | 25 | 50 | 100 | 150 | 200 | 300 |
Heating method | Steam + electric heater, diesel oil, natural gas or coal etc | |||||
Diameter of tower (mm) | 1, 200 | 1, 400 | 1, 600 | 2, 200 | 2, 600 | 3, 200 |
Overall dimensions (mm) | 5× 4× 12 | 6× 4× 13 | 6× 4× 15 | 8× 4.5× 19 | 10× 5× 20 | 12× 6× 22 |
Product collection rate | 95-99.9%, as per customer’ s request and property of product |
Model | YPG-18000 | YPG-20000 | YPG-23000 | YPG-25000 | YPG-28000 | YPG-30000 |
Air inlet temperature | 140-550° C, adjustable as per production requirements | |||||
Air exhaust temperature | 70-110° C, as per production requirements | |||||
Nom. water evp capacity (kg/h) | 18, 000 | 20, 000 | 23, 000 | 25, 000 | 28, 000 | 30, 000 |
Heating method | Steam + electric heater, diesel oil, natural gas or coal etc | |||||
Diameter of tower (mm) | 19, 000 | 20, 300 | 21, 800 | 22, 800 | 24, 000 | 25, 000 |
Overall dimensions |
Should configured as per the detailed requirements and workshop available |
|||||
Product collection rate | 95-99.9%, as per customer’ s request and property of product |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() | |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
