Main feature

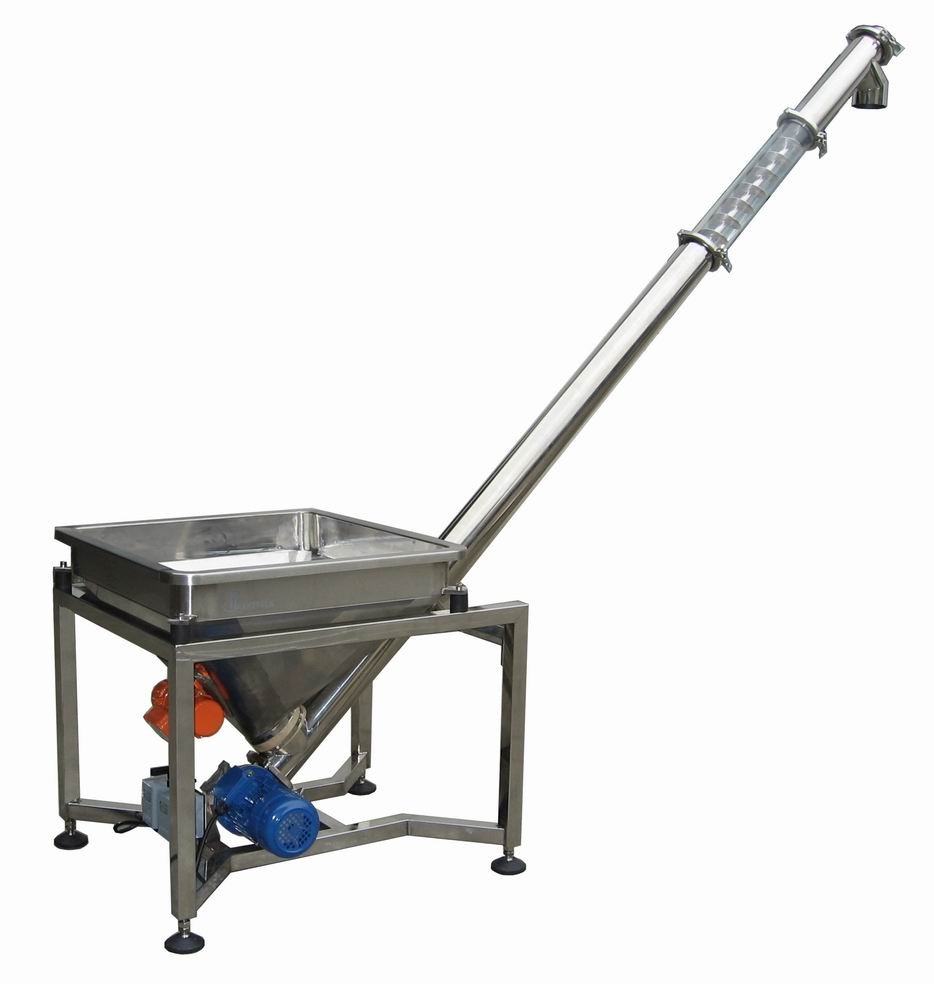

The lifter uses motor to revolve the spiral to push the materials vertically, horizontally and tiltly.It is the desired equipments for conveying various powder and granule.
| Send the angle of elevation β=450,Rotational speed of spiral n=134r/min | |||||||
| model | model 10 | model 12 | model 14 | model 16 | model 20 | model 25 | |
| ID of cylinder(mm) | 100 | 120 | 140 | 160 | 200 | 250 | |
| conveying capacitor (t/h) |
cement p=1.25 | 2.4 | 4.7 | 8.3 | 11.0 | 21.0 | 40.0 |
| coal dustp=0.6 | 1.2 | 2.3 | 4.0 | 5.3 | 10.0 | 19.2 | |
| carbonp=0.9 | 1.7 | 3.4 | 6.0 | 7.9 | 15.0 | 28.8 | |
| saltp=1.2 | 2.3 | 4.5 | 8.0 | 10.5 | 21.0 | 38.4 | |
