Main Application
The machine is applied for pharmaceutical, chemical, foodstuff, magnetic material and powder industries, representing a new generation pulverizer combine crush with dust absorption and continuously eject material.
Characteristics
The machine has a simple structure and is easy to be installed and dismantled and cleaned,with the features of stable running, convenient moving, low noise and high grinding efficiency, etc.
Working Method

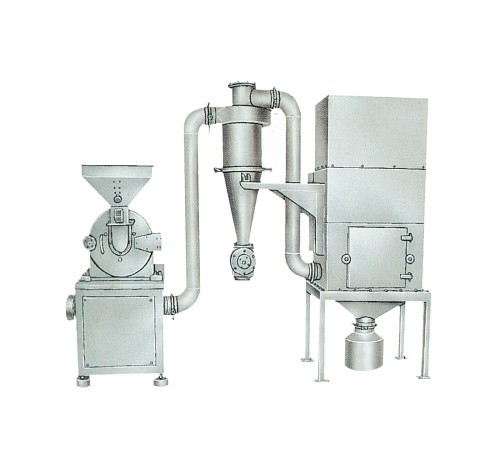

The machine is composed of crusher, cyclone separating device, pulse dust absorption box, and draught fan, etc. The material is feeding into grind chamber through the upper feeder, stroked by the rotating hummer in the high speed. The crushed material being feed into cyclone separating device, and exit through the airlock by the active of centrifugal force and draught fan. The dust being feed into pulse dust absorption box, and be filtered and cycled through filter. The machine reached the"GMP"standard, and made of stainless steel.
Technical Data
Model |
250 |
350 |
450 |
650 |
850 |
Capacity |
50-100 |
100-300 |
150-800 |
300-1500 |
500-2000 |
Size of input granules |
≤5 |
≤5 |
≤5 |
≤5 |
≤5 |
Fineness of products(Mesh) |
20-200 |
20-200 |
20-200 |
20-200 |
20-200 |
Crush power |
5.5 |
11 |
15 |
22 |
30 |
Dust absorption power |
2.2 |
3 |
4 |
5.5 |
11 |
Exit power |
0.75 |
0.75 |
0.75 |
1.5 |
1.5 |
Weight |
580 |
800 |
1200 |
2000 |
3000 |
Overall Size (L×W×H) |
3000×880 ×2350 |
3500×880 ×2350 |
4200×880 ×2350 |
6500×1100 ×2450 |
7800×1100 ×2450 |
