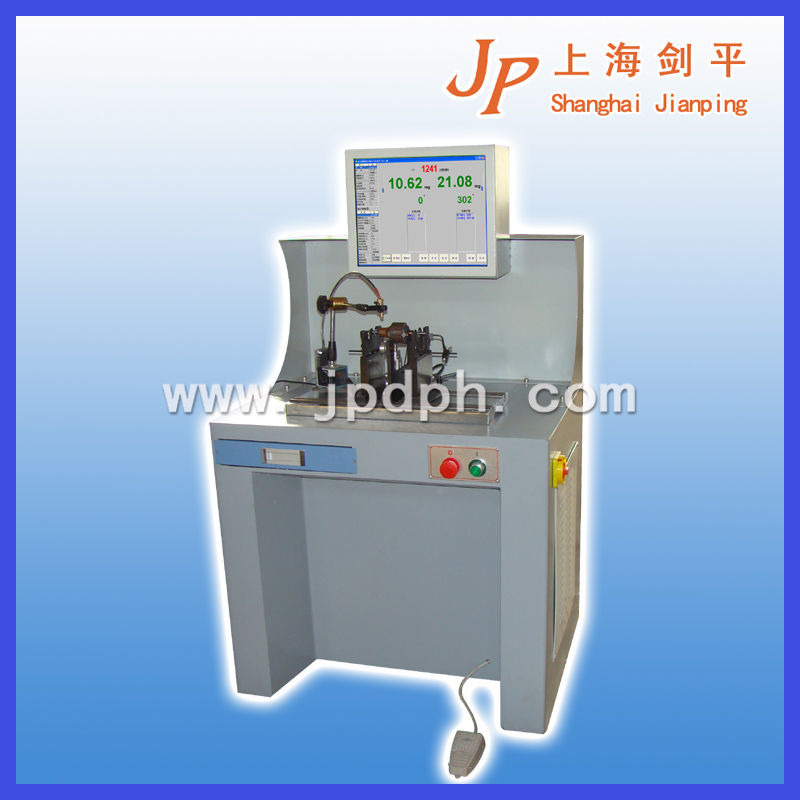

auto-positioning balancing machine
auto-positioning balancing machine is widely used in various types of micro-rotor balance correction,It is touch screen ,servo motor control ,and positioning is accurate.Large screen display.A variety of positioning methods.USB date output,Free stickers reflective markers
| specifications | parameter |
| Maximum weight of workpiece(kg) | 5 |
| Maximum diameter of workpiece(mm) | 260 |
| The distance between two bearing pedestals (mm) | 40-400 |
| Journal diameter on roller carriages(mm) | 3-30 |
| Belt driving diameter(mm) | 20-85 |
| Rotation speed when the diameter of operating transmission is 100mm(r/min) | stepless speed regulation |
|
Motor power (kw) |
0.4(servo motor ) |
|
Minimum achievable residual unbalance (emar)
|
<=0.2g.mm/kg |
