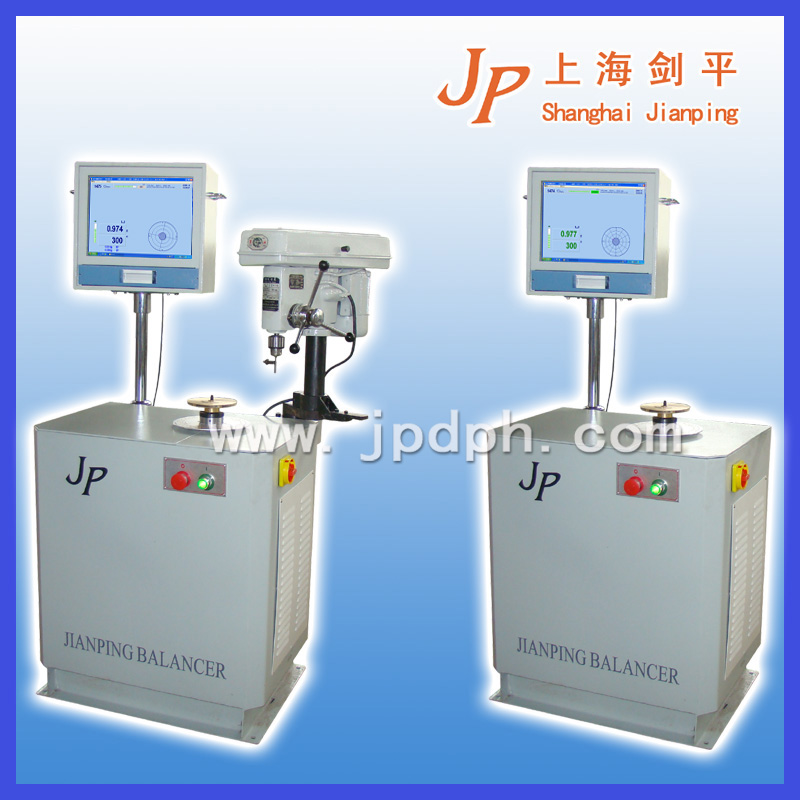

Single-Plane Vertical Balancing Machine
Mainly used in balancing fan impeller,pump impeller,lampblack absorber impeller, flywheel,grinding wheel,chuck,saw blade,arrester,etc.
It can be equipped weight-removing equipment for customer if demanded.
This model has the function of clamp compensation. Its resolution for weight is 1mg,and resolution for angle:1
Several different electric testing systems are available.
This model has the character of elaborate design, high measuring precision, high reliability, easy operation.
|
Specification |
Parameter |
|
Weight of Workpiece (kg) |
5 |
|
Max. Outer Diameter of Workpiece (mm) |
350 |
|
Height of Workpiece (mm) |
120 |
|
Rotating Speed of Main Shaft (r/min ) |
900 |
|
Motor Power (W) |
180 |
|
Min Achievable Residual Unbalance Amount (e mar ) |
2g.mm/kg |
