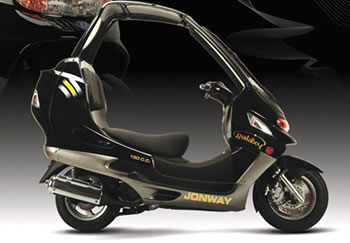

YY150T-2A, 125T-2A Motor Scooter |
- File Name: YY150T-2A--125T-2A-Motor-Scooter-303.pdf
- File Type: pdf
- File Size: 67.02(KB)
- Detailed Download Description: YY150T-2A, 125T-2A Motor Scooter
Description of YY150T-2A, 125T-2A Motor Scooter:
Combining technology and luxury, this motor scooter( also known as electric scooter) is an outstanding model for riders. Thanks to its well-thought-out design, this motorcycleis convenient and simple for maintenance.
Features of YY150T-2A, 125T-2A Motor Scooter:
-External size: 2150*650*1600mm
-Wheel base: 1450mm
- Single-cylinder air-cooled engine
--Fuel capacity: 12.0L
- Starting system
- Approve mode: EPC, EPA, EEC
Technical Specification of YY150T-2A, 125T-2A Motor Scooter:
YY150T-2A
Dry weight: 145kg
Wheel base: 1450mm
Exterior size: 2150*650*1600mm
Maximum speed: 90km/h
Maximum payload mass: 140kg
Fuel capacity: 12.0L
Brake type: F/R: Disk
Engine type: 4 stroke, single cylinder, air cool
Maximum power: 7.0kw/8500r/min
Starting system: Electric
Tyre size: 120/70-12 4.00-12
Battery voltage: 12V/9AH
YY125T-2A
Dry weight: 145kg
Wheel base: 1450mm
Exterior size: 2150*650*1600mm
Maximum speed: 80km/h
Maximum payload mass: 140kg
Fuel capacity: 12.0L
Brake type: F/R: Disk
Engine type: 4 stroke, single cylinder, air cool
Maximum power: 5.85kw/8500r/min
Starting system: Electric/Kick
Tyre size: 120/70-12 4.00-12
Battery voltage: 12V/9A
YY250T-2A
Dry weight: 160kg
Wheel base: 1450mm
Exterior size: 2150*650*1600mm
Maximum speed: 110km/h
Maximum payload mass: 140kg
Fuel capacity: 12.0L
Brake type: F/R: Disk
Engine type: 4 stroke, single cylinder, air cool
Maximum power: 10.0kw/6500r/min
Starting system: Electric
Tyre size: 4.0-12 4.0-10
Battery voltage: 12V/9AH
|
|
