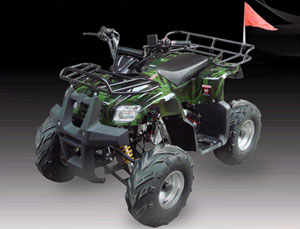

Description of SK110 ATV Quads:
SK110 ATV/Quads is a trusted and long serving name in off road transportation. We remain dedicated to quality so you can count on a successful trip wherever you go. And now with the latest reliable engine, it has incredible power and performance to go with quiet running operations.
Technical Specification of SK110 ATV Quads:
CONFIGURE
Colors available Red, blue, pink, maple camo, army green camo, black
Features *
Decals (Y/N) Y
Tool kit (Y/N) Y
Remote start (Y/N) N
Remote engine stop (Y/N) N
Remote alarm (Y/N) N
Speed limiter (Y/N) Y
Assembly required Handlebar, wheel, speedometer bumper, tailstock
ENGINE INFO
Engine type Chain
Engine brand *
Displacement 110cc
Cooling Ail cooled
Max horsepower 7.38hp/8500rpm
Max torque 6.5n.m/6000rpm
Bore*stroke 2.06*1.95inches
Max speed 34.2mile/h
Climbing ability 15degree
Ignition C.D.I
Starting system Electric
Battery 12V/4Ah
Carburetor brand PZ19
Engine oil SAE15W/40SF
Gear oil *
CHASSIS ETC
Clutch Automatic
Transmission *
Driveline ; Chain-drive
Driving wheel Rear wheel drive
Suspension, front/rear Double a-arm/single
Brakes, front/rear Drum/disc
Brake operation Hand
Tires, front/rear 16*8-7
Fuel capacity/type 0.8gal
Weight, G.W./N.W 242.5/198.4lbs
Max load *
DIMENSIONS
Wheelbase 34.2inches
OA L*W*H 52.8*30.3*35.8inches
Height to seat 25.6inches
Min ground clearance 9.3inches
Carton size 45.2*32.6*25.5inches
Shipping info 112pcs/40HQ
|
