- Detailed Download Description: SK110 ATV Quads-4

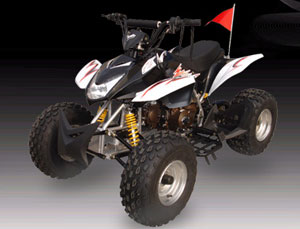

Description of SK110 ATV Quads:
Jonway ATV/quads always offer what our rider wants, including quick acceleration, easy steering and smooth running. With a reliable engine and plenty of comforts, it can make the riding fun for you.
Features of SK110 ATV Quads:
- Light dry weight
- A wide range of colors
- Single-cylinder, 4-stroke engine
- Disc brakes front & rear
- Electric starter
- Automatic clutch
- Approve mode: EPC, EPA, EEC
- 6 months warranty for electric parts, one year or 8000km warranty for others.
Technical Specification of SK110 ATV Quads:
CONFIGURE
Colors available Red, blue, black, maple leaf camouflage
Features *
Decals (Y/N) Y
Tool kit (Y/N) Y
Remote start (Y/N) N
Remote engine stop (Y/N) N
Remote alarm (Y/N) N
Speed limiter (Y/N) Y
Assembly required Front/rear wheel, front brake, left/right turning shaft, front shock, front plastic
ENGINE INFO
Engine type Chian
Engine brand *
Displacement 110cc
Cooling Air cooled
Max horsepower 7.0h.p/8000rpm
Max torque 6.9n.m/8000rpm
Bore*stroke 2.06*1.95inches
Max speed 34.2mile/h
Climbing ability 15degree
Ignition C.D.I
Starting system Electric
Battery: 12V/7Ah
Carburetor brand PZ19
Engine oil SAE15W/40SF
Gear oil *
CHASSIS ETC
Clutch Automatic
Transmission 1-speed+reverse
Driveline Chain-drive
Driving wheel Rear wheel drive
Suspension, front/rear Double a-arm/single a-arm
Brakes, front/rear Disc
Brake operation Hand
Tires, front/rear 16*8-7/16*8-7
Fuel capacity/type 1.0gal
Weight, G.W./N.W 264.5/200.4lbs
Max load 132.2lbs
DIMENSIONS
Wheelbase 38.6inches
OA L*W*H 59.1*39.4*36.6inches
Height to seat 27.2inches
Min ground clearance 3.9inches
Carton size 51.2*29.9*26.4inches
Shipping info 104psc/40HQ
|
