1)we can design for you
2)high quality and good service
3)comparative price
4)PLC control with high efficient
5)CE ISO9001

Detailed Product Description

Highway Guardrail Forming Machine

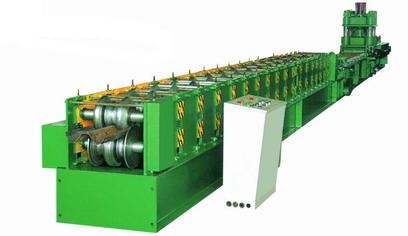

Highway Guardrail Roll Forming Machine

This Guard rail roll forming machine consists of electric decoiler,
automatic hydraulic punching system,feeding and guiding part,
leveling parts,forming roller system,hydraulic cutting,stacking table,
PLC control board

1. Matching material: PPGI or HDGI (S235 JR or EN 10025, ASTM570 G33)
2. Material thickness: 2.85-4mm, width: 482mm to 750mm
3. Main motor power for forming: 45kw
4. Forming speed: 12m/min
5. Hydraulic station power: 11 kw
6. Forming stands: 2 archs for 12 stands, 3 archs for 16 stands forming roller
7. Hydraulic pressure: 10-12 mpa
8. Controlling system: PLC
9. Total weight: about 39MTS
10. Voltage: 380V/ 3phase/ 50 Hz

Additional info
Material of forming rollers: GCr15 bearing steel with quenched treatment
Material of cutter blade: Cr 12 mould steel with quenched treatment
