The deck floor panels forming by this machine is used for building surface panels, it has many advantages, such as high wave, high strength, high automation and low cost.
    Steel structural floor panel is the type of steel construction material with character of low light, hard, easy to install, which extensively apply in constructing skyscraper, residential building and bridge. HBYX series steel structural floor panel with the feature of reliable, convenient operation, automatic can be used in various steel structural floor panels forming.
     This machine is composed of uncoiler, feed leading table, main forming machine, punching system, cutting device, hydraulic station and computer control system.

Optional system are normal uncoiler and hydraulic uncoiler.

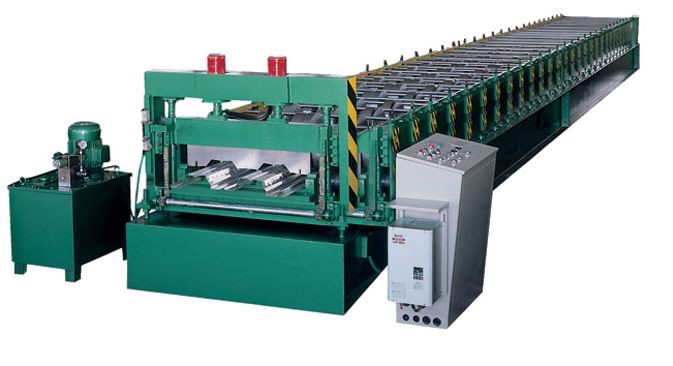

Floor Deck Roll Forming Machine
Uncoiling---Feeding---Leveling---Punching---Rool Forming---Cutting---Products Collecting

Main technical parameter:
Material : Galvanized steel sheet
Thickness of raw material: 0.8--1.2mm
Width of raw material: 1250mm
Wffective width : 915mm
Main motor power: 18.5kww
Hydraulic motor power: 4kw
Materail of cutter: Cr12
Working speed: 10-12m/minn
total weight : about 18tons
Voltage: 380v 3 phase 60Hz or as per the customer's requirement
Control system: PLC control

YXFD51-240-720	YXFD51-305-914
Model Material Thickness Material Width Effective Width Roll Stand Motor Power YXFD51-240-720 0.8-1.2mm 1000mm 720mm 30 11kw×2 YXFD51-305-914 0.8-1.2mm 1150mm 914mm 30 11kw×2
YXFD50-200-600	YXFD50-334-1000
Model Material Thickness Material Width Effective Width Roll Stand Motor Power YXFD50-200-600 1.0-1.2mm 1000mm 600 36 11kw×2 YXFD50-334-1000 0.8-1.2mm 1219mm 1000mm 28 11kw×2
YXFD75-200-600	YXFD76-344-688
Model Material Thickness Material Width Effective Width Roll Stand Motor Power YXFD75-200-600 0.8-1.2mm 1000mm 600mm 25 18.5kw YXFD76-344-688 0.7-1.2mm 1000mm 688mm 30 11kw×2
