ISO 5211 Direct Mount Pad No bracket or drive coupling needed for automation
Eliminates exposed moving parts for safer work environment
Direct drive eliminates play and improves actuator positioning High-Cycle, Live-Loaded Stem Packing Ensures tight seal
Extends service life
O-Ring Stem Bearing Maintains stem alignment
Reduces packing side loading and wear
Enhances stem seal
Blow-Out-Proof Stem Stem is bottom loaded to prevent removal when valve is in service
Full Port Design Improves flow resulting in increased process efficiencies
Facilitates cleaning of process lines without removing valve

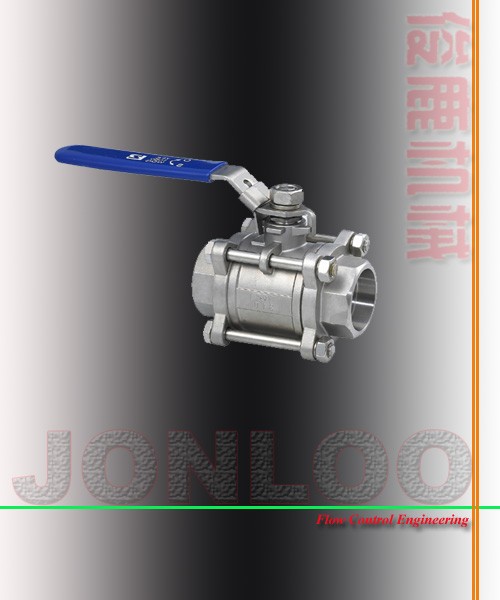

3-Piece Construction Easy to repair
Locking Device Enables plant personnel to secure valve in open or closed position when manually operated
Investment Cast Improves dimensional control and reduces porosity
Pressure Blance Hole in Ball Slot
Anti-Static Device for Ball-Stem-Body
Operating / Test Conditions:
Temperature Range: -20℃ to 190℃
Maximum Working Pressure :
1000 PSI WOG
Working Medium: Water, Oil, Gas, Acid, etc
Design:ANSI/ASME B16.34
Inspection&Testing: API 598
End connections: All to B16.34; NPT to B1.20.1; socket weld to B16.11; butt weld to B16.25; flanged to B16.5
Options:
End connections available in NPT, socket weld, butt weld, and flanged in SS316,SS304 or carbon steel WCB
