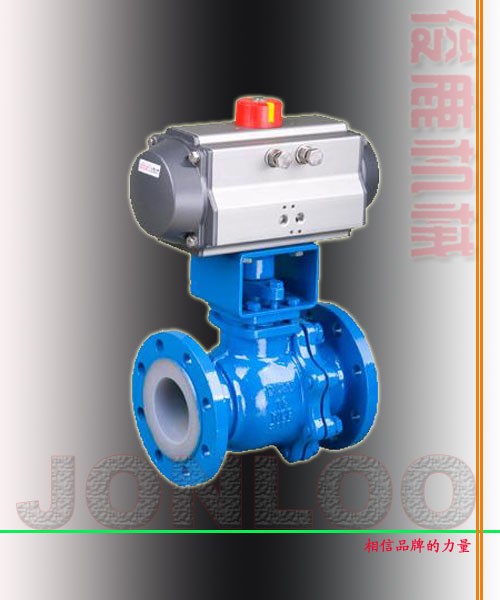

Fluorine Lining Ball Valve
Features:
1. Size: 1/2-16"
2. Body: WCB(CAST STEEL), CF8, CF8M, CF3, CF3M
3. Lining material: PFA, FEP, PTFE
4. CLASS: PN1.0 PN1.6 150LB, 300LB
Standard compliance:
1. ) Design and manufacture: API 6D, API 608, ANSI B16.34, or DIN, JIS
2. ) Face to face dimensions: ANSI B16.10 GB12221
3. ) End flange dimensions: ANSI B16.5 JB78, DIN, JIS
4. ) Test: API 6D or API 598
Type of operation:
1. ) Lever
2. ) Connection dimension of worm gear actuator, electric actuator, pneumatic actuator to ISO 5211 standard
