Home
>
Products Show
>
Ball Valve
> 2PC Stainless Steel Ball Valve(Flange ends)
2PC Stainless Steel Ball Valve(Flange ends)
Original Image
Products Visitors:
776
Product Name:
2PC Stainless Steel Ball Valve(Flange ends)
Products description:
2PC Stainless Steel Ball Valve(Flange ends)
Features and Benefits:
Full Port Design
Full port construction improves flow characteristics for greater process efficiencies
Blow-Out-Proof Stem
Stem is bottom loaded to prevent removal when valve is in service
Locking Device
Enables plant personnel to secure valve in open or closed position when manually operated
Live-Loaded Stem Packing
Provides constant load on the stem seal and extends service life
Corrosion Resistant
Made of 316 stainless steel (A351 Gr. CF8M) for greater chemical resistance and longer service life
ISO 5211 Direct Mounting Pad
Anti-Static Device for Ball-Stem-Body
Pressure Blance Hole in Ball Slot
2 Belleville Washer to Self-adjust Packing
Fire safety Design
Operating / Test Conditions:
Temperature Range: -20
℃
to 190
℃
Maximum Working Pressure:
ANSI 150/ANSI 300
Working Medium: Water, Oil, Gas, Acid, etc
Design: ANSI/ASME B16.34,EN 12516-1
Inspection&Testing:API 598,EN 12266
Length to ANSI B16.10
Flange connection to ANSI B16.5
Options
Pneumatic Actuator
Body Material:
ASTM A351-CF8M,CF8,
CF3M,CF3
ASTM A216-WCB
Product Images:

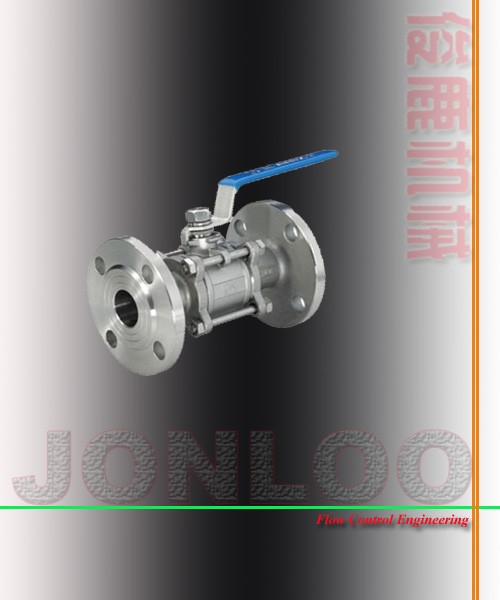

2PC Stainless Steel Ball Valve(Flange ends)
