> 2-pc Stainless Steel Ball Valve(2000WOG)
2-pc Stainless Steel Ball Valve(2000WOG)
Original Image
Products Visitors:
742
Product Name:
2-pc Stainless Steel Ball Valve(2000WOG)
Products description:
2-pc Stainless Steel Ball Valve(2000WOG)
Features and Benefits:
2-Piece Design
Full Port
Full port construction improves flow characteristics for greater process efficiencies
Blow-Out-Proof Stem
Stem is bottom loaded to prevent removal when valve is in service
Live-Loaded Stem Packing
Provides constant load on the stem seal and extends service life
Locking Device
Enables plant personnel to secure valve in open or closed position when manually operated
Corrosion Resistant
Made of 316 stainless steel (A351 Gr. CF8M) for superior chemical resistance and longer service life
Investment Cast Body
Improves dimensional control and reduces porosity
Pressure Blance Hole in Ball Slot
Operating / Test Conditions:
Temperature Range: -20
℃
to 190
℃
Maximum Working Pressure:
2000 W.O.G
Working Medium: Water, Oil, Gas, Acid, etc
Design: ANSI/ASME B16.34
Inspection&Testing:API 598
Pipe thread:ANSI B1.20.1,BS21/2779,DIN 259/2999,ISO228-1
Options
Pneumatic operation,Electric operation
Body Material:ASTMA351-CF8M,CF8,
CF3M,CF3
ASTM A216-WCB
Product Images:

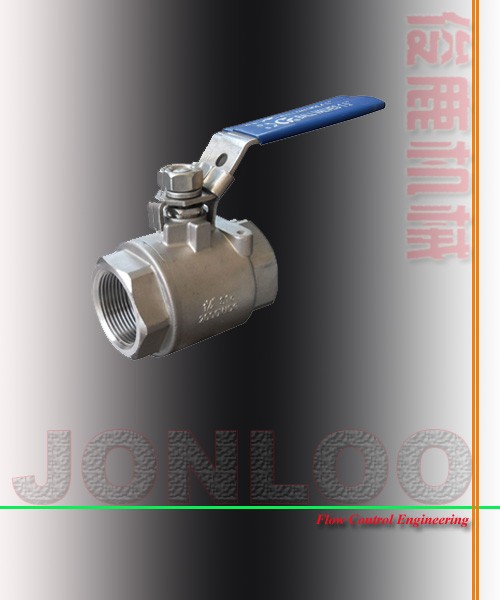

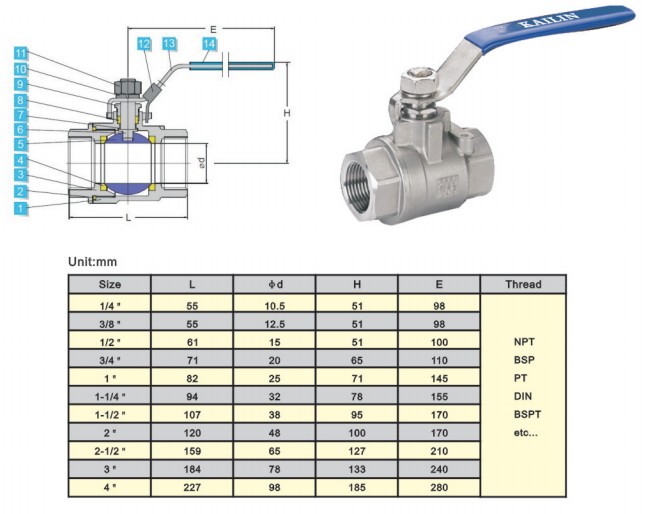

2-pc Stainless Steel Ball Valve(2000WOG)
