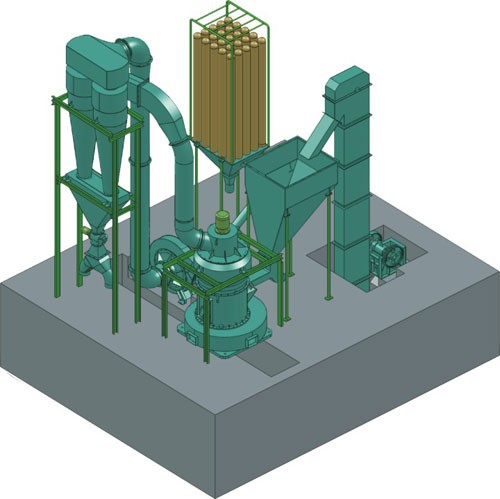

The mill has the following characteristics:
1. The novel grinding system:adopt new-style vertical pendulum to make grinding roll and grinding ring in grinding process always in in parallel to a line to form even surface contact area.
2. large grinding area: the height of the grinding roll and grinding ring from 160mm increased to 200mm.
3.Shovel material using super large: use the big Shovel blade, makes the material tackles the into grinding roll and a magic ring between grinding.
4. classifying precision: using super-large grading turbine, percent of pass is high, deal with big air volume. And grading impeller end and powder outlet end forming palace type sealing, the system doesn't easy to form short-circuit powder, classification precision is high.
5. Double whirlwind: the parallel double whirlwind collector, collecting efficiency over 85%, than the single tornado collector 10% collection efficiency.
6. afterwind adopts baghouse collecting, no dust pollution.
7. High output, low energy consumption: in the same power premise, its output increased by 30% than R series ordinary tilting mill.
Maximum feeding size |
Finished granularity |
output (According to different materials fineness) |
Center shaft speed |
Grinding ring inside diameter |
Roll grinding size (diameterXheight) |
Total weight |
Total power |
20 mm |
80~600 mesh |
3000~7500 kg/h |
140 r/min |
φ980 mm |
φ320X200mm |
14.5 t |
97.5KW |
