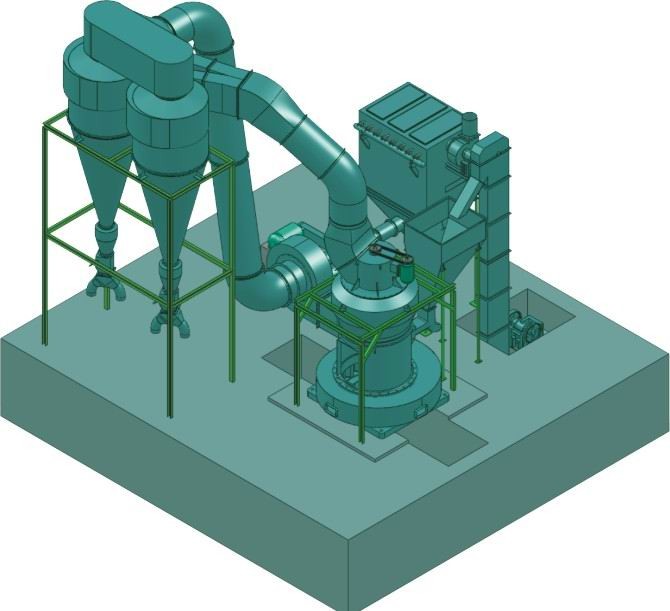

HD 1720 super-large grinding mill is a large one which has been designed and improved by introducing advanced techniques at home and abroad on the basis of 6R series mill.
.It has the following features:
1. high outputIow energy consumption:Its output is equivalent toφ1250 vertical mill's, but energy consumption is three fourths of vertical mill's. and Its output is equivalent to 6 sets 4R3216 raymond mill's, but energy consumption is three fourths of ordinary raymond mill's.
2. the grinding Mill covers an area of 153 square metres, save infrastructure investment.
3. with the high-pressure air-blowers,greatly enhance pneumatic conveying capacity.
4. Using double whirlwind collector, Collection efficiency is Increased by10-50% collection rate than the single .
5. with the Turbine Classifier, product fineness can be arbitrary adjustment between 80-600 mesh.
6. increase Shovel blade : sent the materials into the middle of roll grinding and grinding ring in maximum.
7. adopt Impulse precipitator, save energy and pollute less, Its collection efficiency over 99.9 per cent.
Main technical parameters:
Maximum feeding size |
Finished granularity |
output (According to different materials fineness) |
Center shaft speed |
Grinding ring inside diameter |
Roll grinding size (diameterXheight) |
Total weight |
Host motor power |
Total power |
35 mm |
80~600 mesh |
5~25 t/h |
88 r/min |
φ1720 mm |
φ510X250mm |
46 t |
180 KW |
375 KW |
