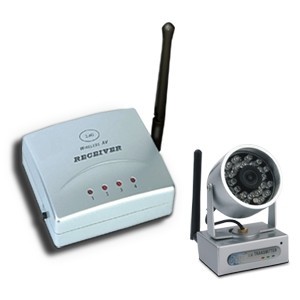

YMRC310+YM812

Feature:

380 TVL of horizontal definition.
Camera with 30pcs of φ5 LED infrared lamps and 15m night vision distance.
Receiver with 4 channels exchangeble manually.
300-500m transmission distance without block.
Audio monitoring with microphone in camera.

Specification of the camera:

Validity Pixel ：628(H) x 582(V) /510(H) x 492(V)

Image Device ：1/3 omn vision"CMOS

Horizontal Definition： 380TV Line

Angular Field of View： 45° (f=6mm)

Minimum Illumination： 0 Lux

Power Adapter： DC 12V/500mA

Dimension：￠57x68mm

Weight：245g

Specification of the receiver:

Receiving Sensitivity：≤-85dBm

Video Output：1Vp-p@75Ω,S/N>38dB

Audio Output：10KΩ/200mVp-p

Power Adapter：DC 12V/500mA

Dimension：96x79x30mm

Weight：114g

Antenna：50ohm SMA

Intermediate Frequency ：480MHz

Frequency Stabilization ：± 100MHz
