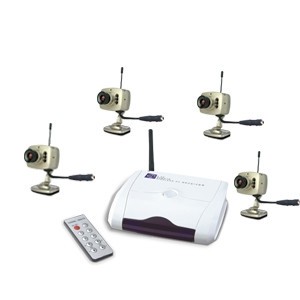

Description of YMRC420A+4*YM208

Switch the receiver's channels by remote control.
380 TVL of horizontal definition.
Micro-camera easy for installation.
4 pieces cameras exchangeble for watch.
Receiver with 4 channesl exchangeble by auto & manual.
100m transmission distance without block.
Audio monitoring with microphone in camera.

camera

TV System:PAL/NTSC
Validity Pixel: 628(H) x 586(V)   510(H) x 492(V)
Image Device: 1/4 CMOS
Horizontal Definition: 380TV Line
Angular Field of View: 45° (f=6mm)
Minimum Illumination: 3.0Lux(F1.2)
Power Adapter: DC 8V/500mA
Dimension: 42x35x53mm
Weight: 65g

Receiver:

Receiving Sensitivity: ≤-85dBm

Audio output: 10KΩ/200mVp-p
Power Adapter:DC 12V/500mA
Dimension: 120x99x30mm
Weight: 165g
Antenna:50ohm SMA

Intermediate Frequency: 480MHz
Frequency Stabilization: ± 100MHz
