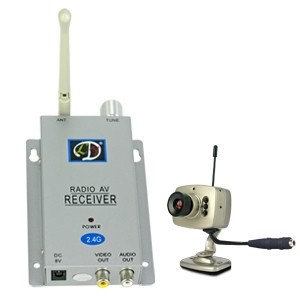

Description of YMRC310+YM208

Transmission Frequency: ISM 2,400 MHz~2,483 MHz 4CH
Micro-camera easy for installation.
Receiver with 4 channels exchangeble manually.
Audio monitoring with microphone in camera.

Camera:(YM208)

TV system:PAL/NTSC

Image Device:1/3" OmnVision CMOS

 Horizontal Definition:  380TV Line

Angular Field of View:45° (f=6mm)

 Minimum Illumination 3.0Lux(F1.2)

Power Adapter ;  DC 8V/500mA

Transmission distance:100M without  block

Dimension:   42x35x53mm

Weight :  65g

Receiver(YMRC210)

 Receiving Sensitivity:   ≤-85dBm
 Audio Output :  10KΩ/200mVp-p
 Power Adapter :   DC 8V/500mA
 Dimension :   115x80x21mm
 Weight :   114g
 Antenna  50ohm SMA
 Intermediate Frequency : 480MHz
 Frequency Stabilization:   ± 100MHz
