Features of YMRC531+4*YM801

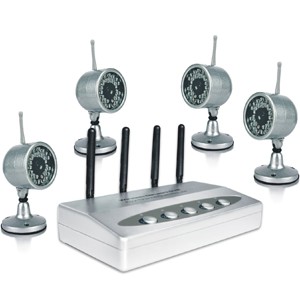

2.4G wireless 4pcs waterproof IR camera kit

The RC531 with a USB connector and can connect with DVR to support Mutli-channel display. There are 4 kinds of record mode(schedule,motion detection,Sensor alarm and recycling)
MPEG4 compression format, greatly reduce HDD usage
Powerful video playing back functions, including playing back, pause, stop, fast-forward, single-frame play and image capture
Support advanced search mode. Users can search by date/time, camera, record mode, and random combination of the three methods
Support recorded files backup, delete by date/time, camera
Convenient to extend system functions by software upgrade
CPU and storage resources saving by advanced technology
Support buzzer, email alarm out
Can greatly decrease fragmented files while using NTFS partition

Specification of camera

TV System:PAL/NTSC
Validity Pixel: 628(H) x 586(V)   510(H) x 492(V)

Led:30pcs

Night vision distance:15m-20m
Image Device: 1/3 Omn Vision CMOS
Horizontal Definition: 380TV Line
Angular Field of View: 45° (f=6mm)
Minimum Illumination: 0Lux(F1.2)
Power Adapter: DC12V/500mA
Dimension: 57*68mm
Weight: 180g

specification of Receiver:

Receiving Sensitivity: ≤-85dBm

Audio output: 10KΩ/200mVp-p
Power Adapter:DC 12V/500mA
Dimension: 205x120x43mm
Weight: 520g
Antenna:50ohm SMA

Intermediate Frequency: 480MHz
Frequency Stabilization: ± 100MHz
