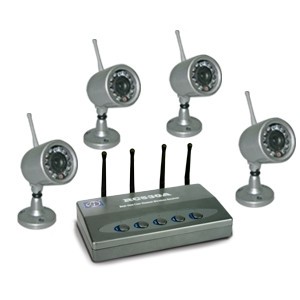

Features of YMRC530+4*YM801

380 TVL of horizontal definition.
Extra 4 PIP with 4 channels for watch.
Camera with 12 pcs of φ5 LED infrared lamps and 7m night vision distance.
Camera designed with waterproof.
Camera can work with wire & wireless.
100m transmission distance without block.
Audio monitoring with microphone in camera.

Specification of camera

TV System:PAL/NTSC
Validity Pixel: 628(H) x 586(V)   510(H) x 492(V)
Image Device: 1/3 Omn Vision CMOS
Horizontal Definition: 380TV Line
Angular Field of View: 45° (f=6mm)
Minimum Illumination: 0Lux(F1.2)
Power Adapter: DC12V/500mA
Dimension: 44*100mm
Weight: 125g

specification of Receiver:

Receiving Sensitivity: ≤-85dBm

Audio output: 10KΩ/200mVp-p
Power Adapter:DC 12V/500mA
Dimension: 205x120x43mm
Weight: 520g
Antenna:50ohm SMA

Intermediate Frequency: 480MHz
Frequency Stabilization: ± 100MHz
