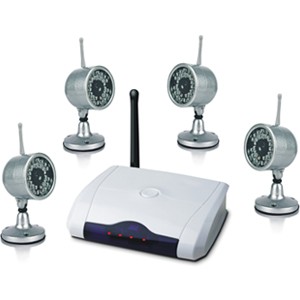

Features of YMRC431+4*YM802

The receiver with USB connector can connected to monitor ,it also can use as an ordinary receiver.

Support Windows XP & VISTA, support USB2.0
Support remote monitoring and controlling by third-party software via PC
Support Internet video telephone
ASF code
Remote Capture video content
Intelligent archiving video surveillance
Remote control cameras
Recorded data and files management

Camera with 30 φ5 LEDs light,IR distance is 15 meters

Specification of camera

TV System:PAL/NTSC
Validity Pixel: 628(H) x 586(V)   510(H) x 492(V)
Image Device: 1/3 Omn Vision CMOS
Horizontal Definition: 380TV Line
Angular Field of View: 45° (f=6mm)
Minimum Illumination: 0Lux(F1.2)
Power Adapter: DC12V/500mA
Dimension: 57*68mm
Weight: 180g

specification of Receiver:

Receiving Sensitivity: ≤-85dBm

Audio output: 10KΩ/200mVp-p
Power Adapter:DC 12V/500mA
Dimension: 120x99x30mm
Weight: 165g
Antenna:50ohm SMA

Intermediate Frequency: 480MHz
Frequency Stabilization: ± 100MHz
